TE Connectivity AMP Connectors 9-188431-0 — Female Socket Headers

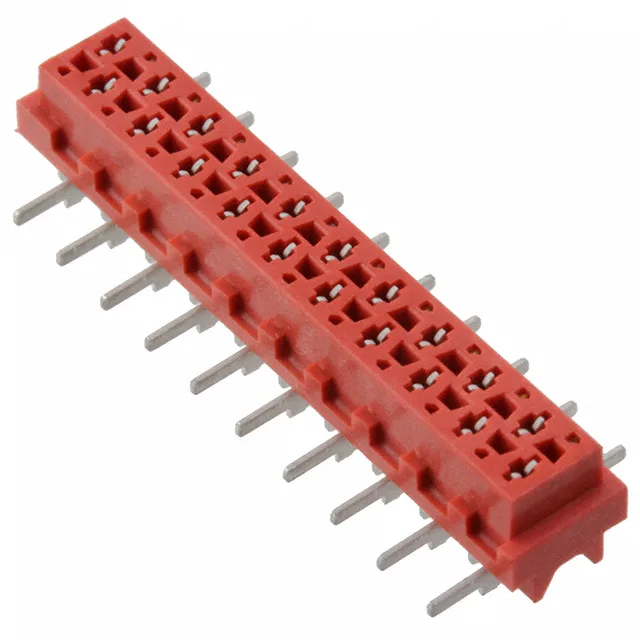

9-188431-0 TE Connectivity Micro-MaTch 20-Pin Receptacle

MPN9-188431-0
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 20 positions, 0.100" (2.54 mm) pitch, tin-plated forked contacts, surface-mount bottom-entry, rated 100 VDC, -40°C to 105°C.

$4.5000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

9-188431-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount, Through Board
Connector typeReceptacle, Bottom Entry
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.154\" (3.90mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

9-188431-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating118.1µin (3.00µm)

Product details

The 9-188431-0: This is a 20-position, dual-row receptacle from TE's Micro-MaTch series, pitched at 0.100" (2.54 mm) — the same grid as legacy DIP packages and standard pin headers, so it drops onto a familiar board footprint.

SMT Termination with Pick-and-Place Ready Packaging

Supplied on tape and reel (cut tape available), with a pick-and-place feature that lets automated assembly handle the part without a nozzle change. The surface-mount termination reflows onto the board pads; the through-board mounting option gives an extra solder anchor for mechanical retention.

Frequently asked questions

How many pins does 9-188431-0 have?

20 positions, all loaded, in a dual-row layout.

What is the pitch of TE Connectivity 9-188431-0?

0.100" (2.54 mm) on the mating face, with the same 0.100" row spacing.

Is 9-188431-0 RoHS compliant?

Yes, it is ROHS3 Compliant per the current lifecycle status.
