5.00 mm pitch, 3-position header with latch holder

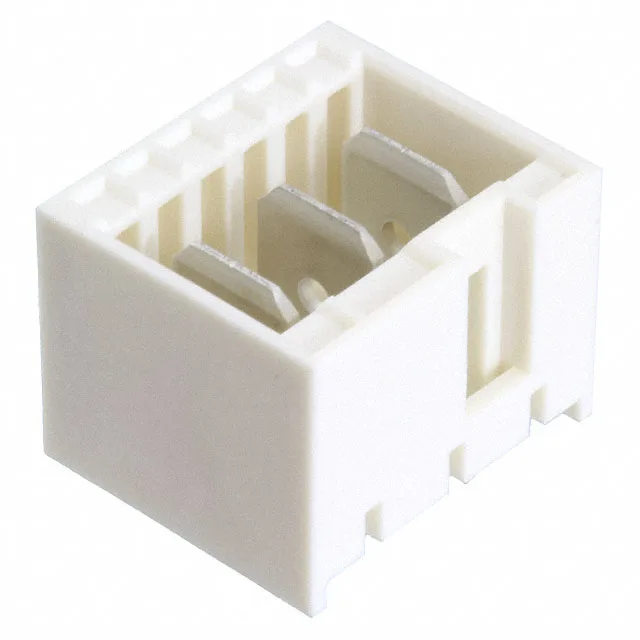

The 9-1971845-3: This is a single-row, shrouded-4-wall header with 3 positions on a 5.00 mm pitch, terminated by through-hole solder. Rated 250 VAC with a -40°C to 120°C operating range, the header suits general-purpose equipment inside enclosures where the UL94 V-0 polyamide housing provides flame resistance. Glow wire compliance (per the features list) supports use in lighting and white goods where IEC 60335-1 glow-wire testing applies.
Position count and row configuration
All 3 positions are loaded in a single row, making this a compact power or signal interconnect for applications that need only three circuits. The 5.00 mm pitch provides generous creepage distance between adjacent contacts at 250 VAC, reducing risk of tracking in humid environments.
No direct stock-holding claim — sourced per RFQ.
