Board-to-cable header with latch holder
The 9-1971846-5: The through-hole solder termination and 5.00 mm pitch suit power distribution where the latch holder keeps the mated pair secure under vibration.

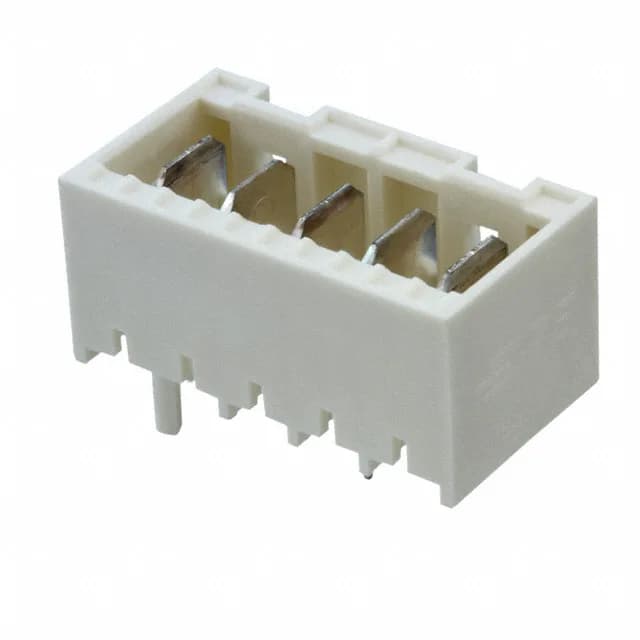

TE 9-1971846-5 Header, 5 Pos, 5.00mm, 20A, Silver
MPN9-1971846-5
Active
TE Connectivity AMP Connectors header, order code 9-1971846-5, 5 positions, single row, 5.00 mm pitch, 20 A per circuit, 250 VAC, silver-plated tab contacts, through-hole, solder termination, shrouded with latch holder.
$1.2396Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | 20A |
| Operating temperature | -40°C~120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 5 |
| Contact finish - post | Silver |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Silver |
Product details
Frequently asked questions
Where can I buy 9-1971846-5 and how do I get a price?
The 9-1971846-5 is available for order in Bulk packaging. Request a quote for current pricing and lead time.
