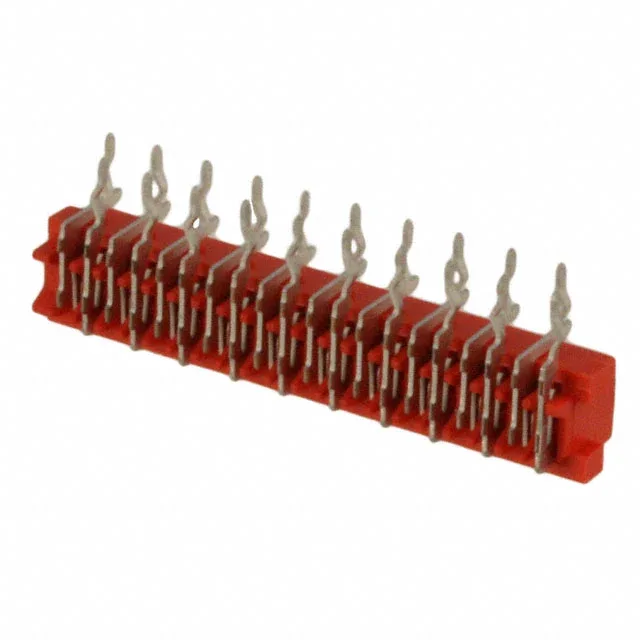

TE Connectivity AMP Connectors 9-215460-0 — Female Socket Headers

9-215460-0 TE Connectivity Micro-MaTch 20-Position

MPN9-215460-0
Active

TE Connectivity AMP Connectors Micro-MaTch series, 9-215460-0, 20-position right-angle receptacle, 0.100" (2.54mm) pitch, tin-on-tin contacts, through-hole termination, UL94 V-0, -40°C to 105°C.

$3.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

9-215460-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.228\" (5.80mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

9-215460-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

20-position right-angle receptacle — board-fit anchor

The 9-215460-0 is a 20-position, dual-row receptacle from the Micro-MaTch series, designed for board-to-board or cable-to-board interconnects. The kinked solder posts (0.122" length) provide mechanical retention during wave soldering.

Tin-on-tin contact system — cost-optimized for moderate duty

Tin-on-tin contacts are a cost-effective choice for applications with fewer than 50 mating cycles and a non-corrosive environment — typical for internal harnesses in automotive or general-purpose equipment where the connector is mated once during assembly. The forked contact design provides a compliant beam that wipes the header pin on insertion, maintaining contact resistance below the circuit limit.

Frequently asked questions

What is the mating connector for 9-215460-0?

As a receptacle in the Micro-MaTch series, it mates with a 0.100" pitch pin header. The specific mating half depends on the application — for board-to-board use, a straight or right-angle header with the same 2-row, 20-position count. Confirm the header part number against your assembly drawing.
