TE Connectivity AMP Connectors 9-2232044-6 — Pin Headers, Sockets & Housings

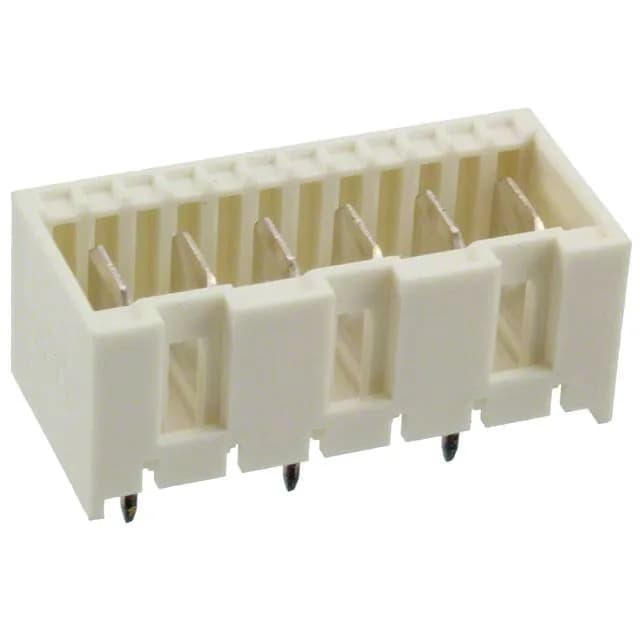

TE 9-2232044-6 Header, 6 Pos, 5.00mm, 20A, Silver

MPN9-2232044-6
Active

TE Connectivity AMP Connectors header, order code 9-2232044-6, 6 positions, single row, 5.00 mm pitch, 20 A, 250 VAC, silver-plated tab contacts, through-hole, solder termination.

$1.2325Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 9-2232044-6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

9-2232044-6 key specifications
ParameterValue
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Current rating20A
Operating temperature-40°C~120°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

9-2232044-6 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.197\" (5.00mm)
Positions6
Contact finish - postSilver
Contact length - post0.138\" (3.50mm)
Contact finish - matingSilver

Product details

Silver-plated tab contacts, 20 A per circuit

The 9-2232044-6 is the 6-circuit member of TE's shrouded header line for board-to-cable/wire applications, using rectangular tab contacts with silver mating surfaces. Rated 20 A at 250 VAC, the silver-plated contacts carry continuous power without the resistance drift of tin at elevated temperature — the UL94 V-0 nylon housing holds the -40°C to 120°C operating range.

Active production, sourced per RFQ

Supplied in bulk packaging; quoted to order against BOM quantity.

Frequently asked questions

What is the mating half for the 9-2232044-6 header?

This is a shrouded-4-wall header with a latch holder fastening system; it mates with the corresponding TE receptacle housing that accepts the same rectangular tab contacts.
