TE Connectivity AMP Connectors 9-966140-2 — Pin Headers

9-966140-2 TE Connectivity MCP Header, 15 Pos 5mm R/A

MPN9-966140-2
Active

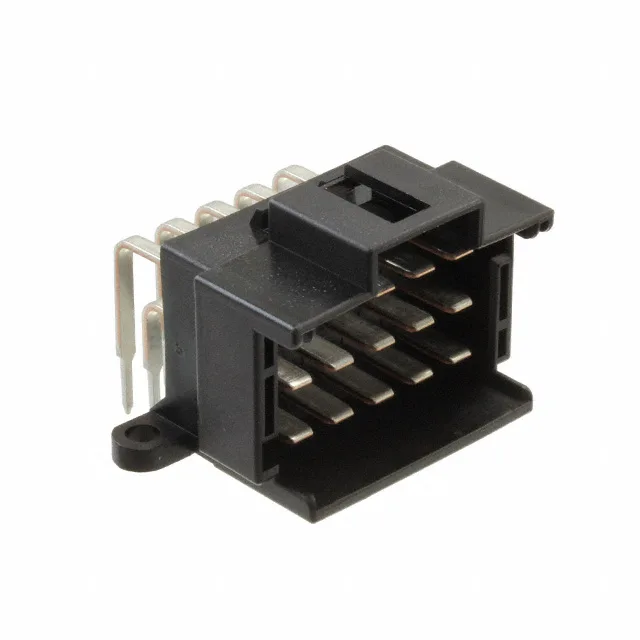

TE Connectivity AMP Connectors MCP series header, 15 positions, 3-row, 5.00 mm pitch, right-angle through-hole, shrouded 4-wall, tin-plated tab contacts, latch holder fastening, black PA66 housing, tray package.

$7.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

9-966140-2 key specifications
ParameterValue
SeriesMCP
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-40°C ~ 100°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height1.012\" (25.70mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
StyleBoard to Board or Cable
PackageTray

All specifications

9-966140-2 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose
Contact shapeRectangular
Rows3
Pitch0.197\" (5.00mm)
Positions15
Row spacing - mating0.217\" (5.51mm)
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin

Product details

The latch holder fastening provides audible positive retention — the primary latch engages on full mate, but there is no secondary TPA, so terminal back-out prevention relies on the crimp quality and housing fit.

What the tin plating means for reconnect duty

Tin-plated mating contacts are rated for fewer mating cycles than gold — typically 50–100 cycles before fretting corrosion increases contact resistance. For higher-cycle applications, a gold-plated sibling in the MCP series is the better choice.

Frequently asked questions

What is the mating connector for 9-966140-2?

The mating half is a TE MCP series receptacle housing (same 15-position, 3-row layout) that accepts the matching crimp tab terminals. The latch holder on the header engages the receptacle's locking ramp for vibration-resistant retention.

Is 9-966140-2 RoHS compliant?

Yes, it is ROHS3 compliant per the manufacturer's compliance declaration.
