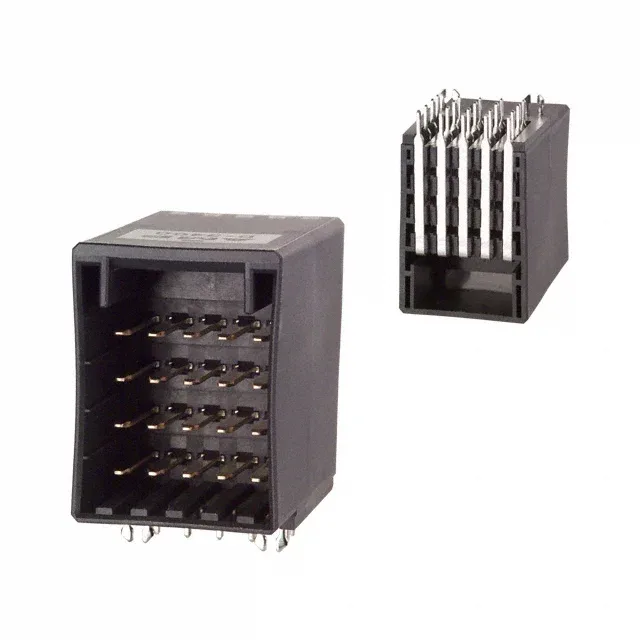

TE Connectivity AMP Connectors Dynamic D-3400 series, 917251-3, 20-position, 4-row, 0.150" (3.81mm) pitch, shrouded, right-angle, through-hole header with gold-plated mating contacts and board lock.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3400 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.244\" (31.60mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 4 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 20 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 917251-3: Right-angle through-hole mounting with full 4-wall shrouding protects the tab contacts during handling and mating. The detent lock provides audible feedback on engagement and resists vibration-induced disconnect.
This header mates with a Dynamic D-3400 series receptacle housing that accepts the matching crimp tab terminals. The 4-row, 20-position layout and 0.150" pitch define the mating interface — confirm the receptacle part number against the series catalog.
