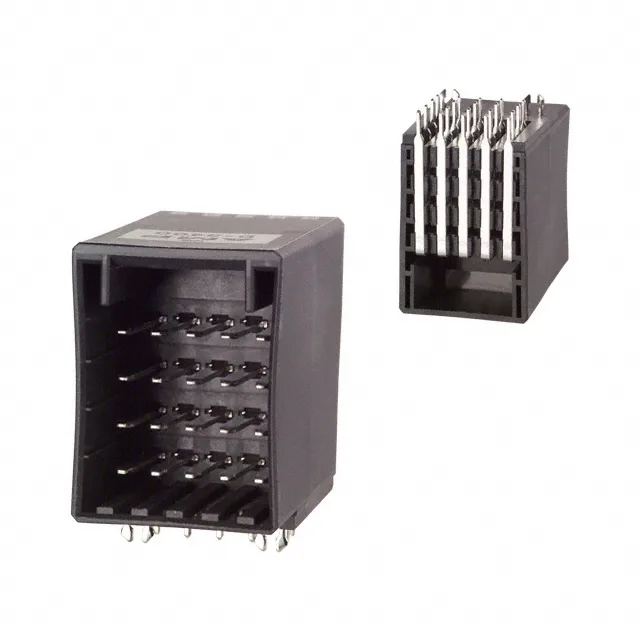

TE Connectivity AMP Connectors Dynamic D-3400 header, order code 917251-5, 20 positions, 4 rows, 0.150" (3.81mm) pitch, 250 V, tin-plated mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3400 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.244\" (31.60mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 4 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 20 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 917251-5 is the 20-position, 4-row member of TE's Dynamic D-3400 header line, shrouded on all four walls with a detent lock for positive retention.
Within the Dynamic D-3400 series the 917251-5's 20 positions sit between the 16-position 917251-4 and the 24-position 917251-6 — the pitch, row spacing, and shrouding are shared across the series, so match the position count to circuit count.
The 917251-5 is listed as Style Board to Board or Cable from the Dynamic D-3400 series.
