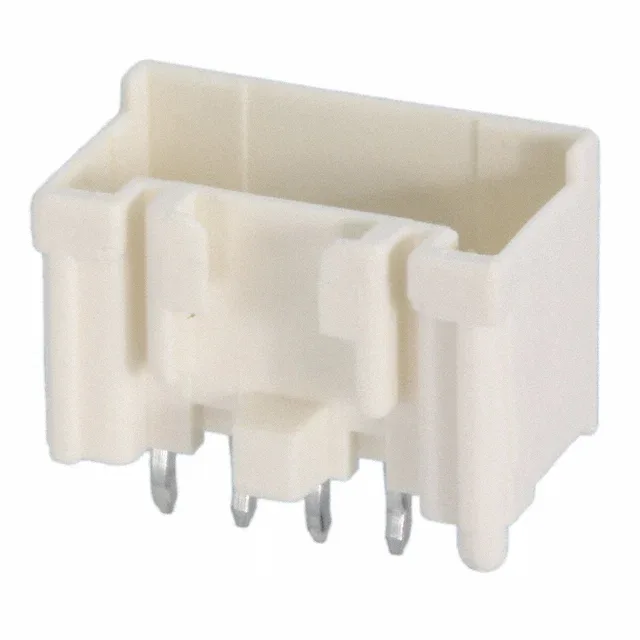

TE Connectivity 917783-1 Header 5 Pos 2.5mm Pitch Signal

MPN917783-1
Active

TE Connectivity AMP Connectors Signal Double Lock header, 917783-1, 5 positions, 2.50 mm pitch, shrouded 4-wall, through-hole, kinked pin solder termination, tin-plated contacts, 3 A, 50 V, natural insulation, UL94 V-0.

$1.0000Ref. price · indicative, final on quote
917783-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

917783-1 Technical Specifications
ParameterValue
SeriesSignal Double Lock
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating50V
Current rating3A
Operating temperature-30°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.386\" (9.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights13.7mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions5
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.410\" (10.41mm)
Contact finish - matingTin
Contact length - mating0.185\" (4.70mm)

Product details

The 917783-1: The single-row, 5-position layout keeps the keep-out zone narrow, useful for edge-mount or space-constrained PCBs. A board guide feature on the housing aids automated placement by centring the header over the plated through-holes.

Rated Performance and Material Choices

Tin-on-tin mating (contact finish on both sides) is cost-effective for moderate-cycle applications; expect several hundred mates before fretting becomes a concern in clean environments.

The solder tail length of 0.126" (3.20 mm) suits standard 1.6 mm thick PCBs with a 0.8 mm solder fillet allowance.

Frequently asked questions

What is the mating connector for 917783-1?

The 917783-1 mates with a Signal Double Lock receptacle housing that accepts crimp terminals. The mating half must have 5 positions at 2.50 mm pitch and a latch holder feature to engage the header's locking ramp.
