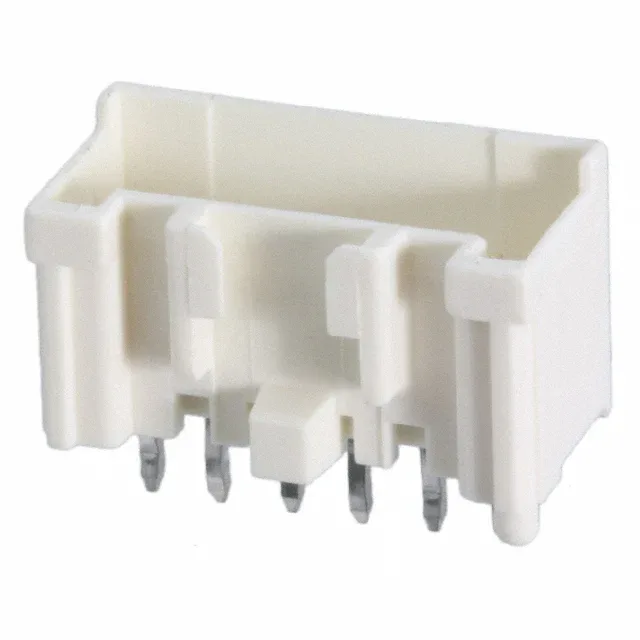

917784-1 TE Connectivity AMP Connectors 6-Pin Header 2.5mm

MPN917784-1
Active

TE Connectivity AMP Connectors Signal Double Lock header, 917784-1, 6 positions, 2.50mm pitch, shrouded 4-wall, through-hole, kinked pin solder termination, tin-plated male pins, 3A, 50V, natural PA66 housing, UL94 V-0.

$0.8800Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

917784-1 Technical Specifications
ParameterValue
SeriesSignal Double Lock
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating50V
Current rating3A
Operating temperature-30°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.386\" (9.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights13.7mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions6
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.410\" (10.41mm)
Contact finish - matingTin
Contact length - mating0.185\" (4.70mm)

Product details

Board-fit and routing reality for a 6-position 2.50mm header

The 917784-1: The through-hole termination with kinked pins provides a positive solder anchor; the 0.126 in (3.20 mm) post length suits standard 1.6 mm PCBs.

Mating half and latch behaviour

The 4-wall shroud guides the plug and prevents pin damage during blind mating. This header mates with the Signal Double Lock receptacle housing (TE part number 917806-1 for 6 positions) and the corresponding crimp terminals (e.g., 917798-1 for 22-26 AWG).
