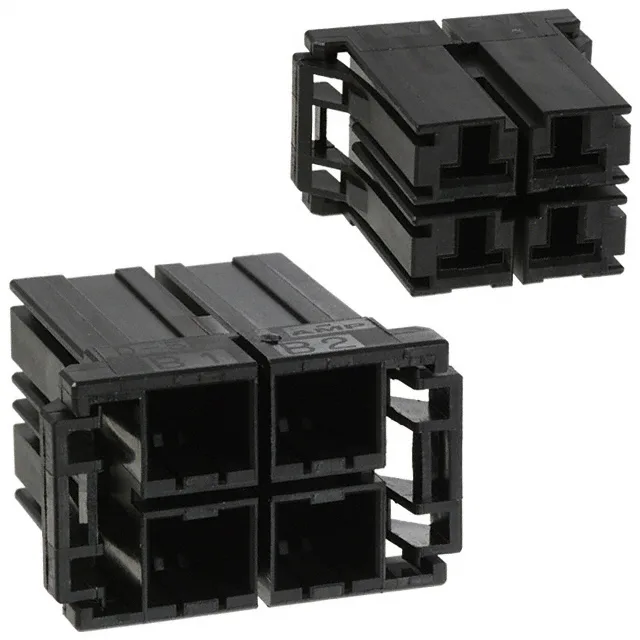

TE Connectivity Dynamic D-5200 series receptacle housing, 917807-2, 4 positions, 2 rows, 10.16 mm pitch, free-hanging (in-line) mount, crimp termination, black thermoplastic housing, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | Dynamic D-5200 |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.400\" (10.16mm) |
| Package | Bulk |
| Row spacing | 0.400\" (10.16mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 4 |
The 10.16 mm pitch gives each circuit enough physical spacing to handle the larger crimp terminals typical of high-current power contacts — this is the housing you reach for when routing 10-14 AWG power wiring in an industrial cabinet or a battery harness.
You need to order the Dynamic D-5200 series crimp socket terminals separately. Verify the terminal part number against the wire gauge you're running before the housing arrives on the line.
The 917807-2 accepts Dynamic D-5200 series female socket contacts terminated via crimp. The contacts are not included with the housing — they must be ordered as a separate line item. Confirm the specific terminal part number for your wire gauge before ordering.
