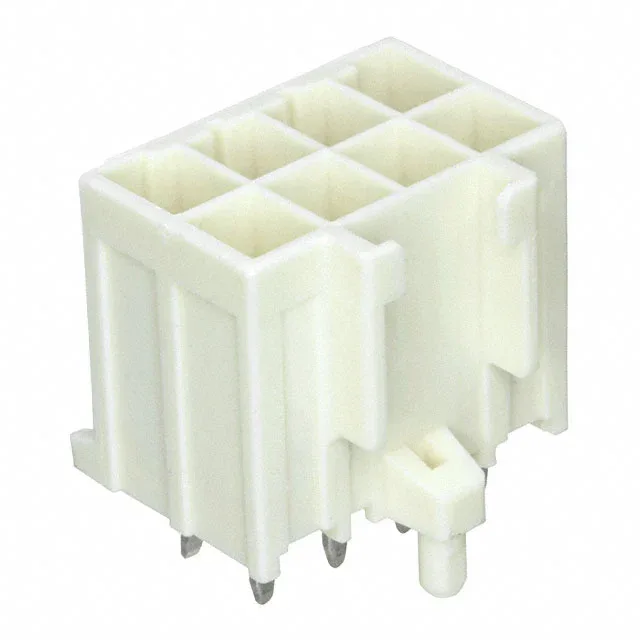

917845-1 TE Connectivity Power Double Lock Header 8 Pos

MPN917845-1
Active

TE Connectivity AMP Connectors Power Double Lock header, 917845-1, 8 circuits, 3.96 mm pitch, dual-row, shrouded with locking ramp, through-hole solder termination, tin-plated contacts, UL94 V-0 housing.

$2.3200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPower Double Lock
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

917845-1 key specifications
ParameterValue
SeriesPower Double Lock
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.575\" (14.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

917845-1 additional specifications
ParameterValue
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeRectangular
Rows2
Pitch0.156\" (3.96mm)
Positions8
Row spacing - mating0.181\" (4.60mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin

Product details

3.96 mm pitch, 8-circuit power header

It carries 8 circuits in a dual-row layout with a 3.96 mm mating pitch and a 4.60 mm row spacing — the pitch sets the PCB footprint and the per-contact current ceiling for tin-plated contacts in this series. The board guide eases alignment during assembly.

The contact post length is 0.150 inches (3.81 mm), which sets the board thickness range the header can accommodate. The header mates with the Power Double Lock receptacle housing (series-specific crimp terminals sold separately). The tab contact shape is rectangular, matching the receptacle's box terminal for reliable contact normal force.
