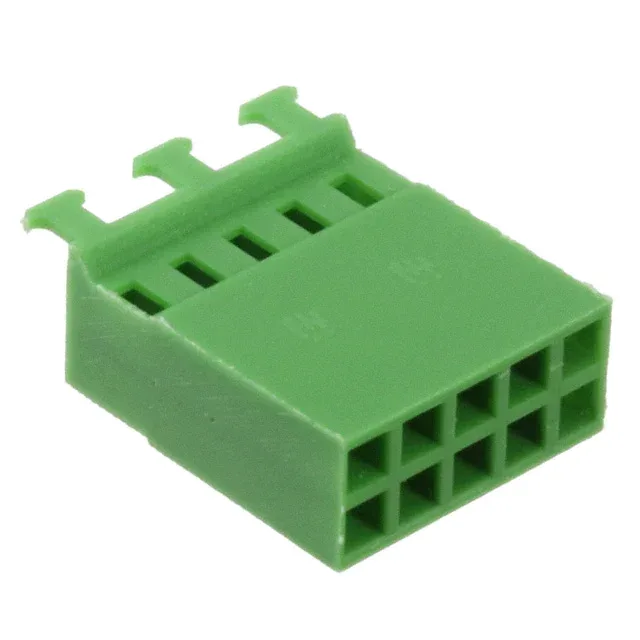

925370-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPMODU Mod IV 925370-5 Receptacle Housing, 10 Pos

MPN925370-5
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 925370-5, 10 positions, 2 rows, 0.100" (2.54mm) pitch, free hanging, crimp termination, green, contacts not included.

$0.9200Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

925370-5 Technical Specifications
ParameterValue
SeriesAMPMODU Mod IV
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorGreen
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions10

Product details

10-Position Free-Hanging Receptacle Housing

The 925370-5: It is a free-hanging (in-line) housing designed for crimp termination — you add the female socket contacts separately, as the housing ships empty.

Housing Specs and Contact Fit

The 925370-5 is a receptacle housing only — contacts are ordered separately. It accepts AMPMODU Mod IV female socket crimp terminals; the exact contact part number depends on your wire gauge and plating preference. The free-hanging design means no PCB mount — the housing terminates in-line along a cable bundle.

Mating and Termination

Termination is crimp-style — strip the wire, crimp the female socket terminal, and insert it into the housing cavity until the retention lance locks. No soldering or special tooling beyond a standard crimp frame and the correct anvil for the terminal size.

Frequently asked questions

Where can I buy 925370-5 and how do I get a price?

Submit a quote request with your target quantity and the current pricing and availability will be confirmed at quote time.

Does 925370-5 include contacts?

No, the 925370-5 is a receptacle housing only — contacts are not included and must be ordered separately. The housing accepts AMPMODU Mod IV female socket crimp terminals.

What is the mating header for 925370-5?

Look for unshrouded or shrouded headers from the same series with 10 positions.

Is 925370-5 RoHS compliant?

Yes, the 925370-5 is RoHS compliant per the manufacturer's listing.
