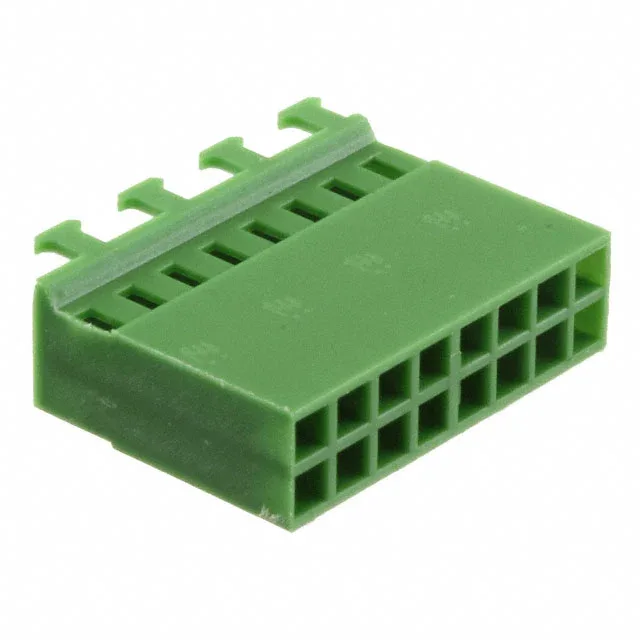

925370-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 925370-8 AMPMODU Mod IV Receptacle Housing

MPN925370-8
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 925370-8, 16 positions, 2 rows, 0.100" (2.54mm) pitch, 0.100" row spacing, green PA66, free hanging, crimp termination, -65°C to 105°C.

$1.4100Ref. price · indicative, final on quote
925370-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

925370-8 Technical Specifications
ParameterValue
SeriesAMPMODU Mod IV
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorGreen
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions16

Product details

The housing ships empty — the AMPMODU Mod IV crimp socket terminal is a separate line item. Ordering the 925370-8 without the matching contact means the harness cannot be assembled. The correct terminal is the TE AMPMODU IV female crimp socket, typically ordered in bulk reels or strip form for the crimp press.

Both the pitch and the row spacing are 0.100" (2.54mm). That is the standard AMPMODU Mod IV grid, so the 925370-8 mates with any 2x8 pin header on that same 0.100" x 0.100" matrix. The dual-row layout gives 16 circuits in a compact width — about 0.500" across the housing body — which fits a standard 0.100" header footprint on the PCB. No special keep-out or routing clearance beyond the header body is needed.

Frequently asked questions

Where can I buy the TE 925370-8 and what is the lead time?

Submit an RFQ for your BOM quantity to get a firm lead time and price.

What contacts are compatible with 925370-8?

The 925370-8 accepts AMPMODU Mod IV female socket crimp terminals. The contacts are not included with the housing. Order the TE AMPMODU IV crimp socket separately, selecting the plating (gold or tin) and wire gauge range (typically 22-28 AWG) that matches your application.

Is 925370-8 RoHS compliant?

Yes, the 925370-8 is RoHS compliant per the TE Connectivity lifecycle record.
