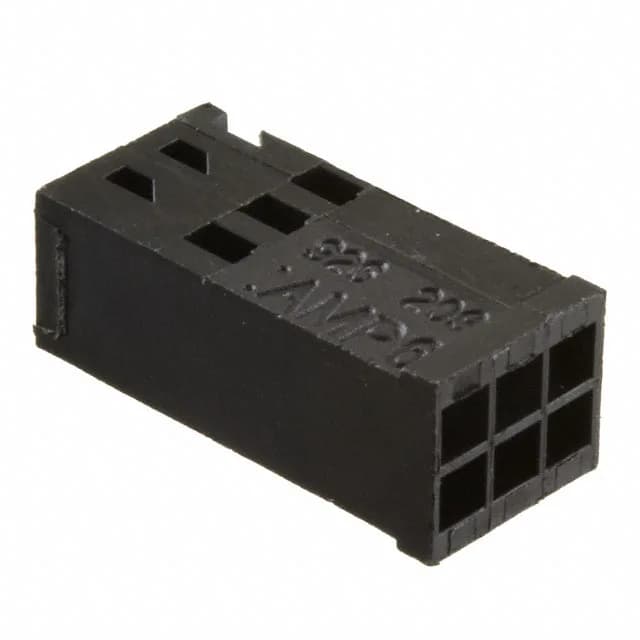

TE Connectivity, 926209-3, Receptacle Housing, 6 Positions, 2.54mm Pitch, 2 Rows, Crimp Termination, Free Hanging, Black PBT Housing, Contacts Not Included.
| Parameter | Value |
|---|---|
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
For a complete wire-to-board or wire-to-wire interconnect, you will need the matching crimp terminals (TE socket contacts for 0.100" pitch housings) and the mating header. The dual-row, 6-position layout mates with a standard 2-row, 2.54mm pitch pin header. The crimp termination allows field-serviceable wire attachment, and the free-hanging mount suits harness runs where a PCB-mounted header is the other half.
Submit a request for quote with your target quantity; current pricing and lead time are confirmed at quote time.
Yes, the 926209-3 is RoHS compliant.
The 926209-3 accepts female socket contacts with a crimp termination. Contacts are not included with the housing and must be ordered separately. Use TE socket contacts designed for 0.100" (2.54mm) pitch housings.
