What This Housing Does in the Harness

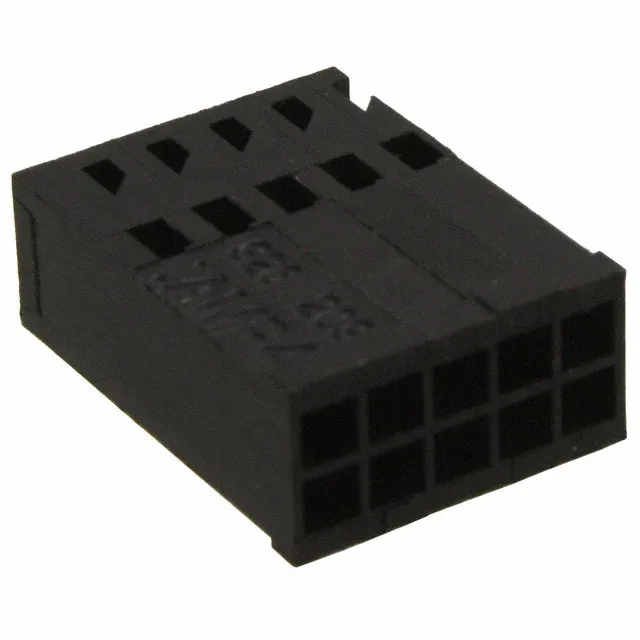

The 926209-5: It accepts female socket crimp terminals and terminates to discrete wires for a free-hanging (in-line) interconnect. The glass-filled PBT insulator is rated for an operating range of -65°C to 105°C, which covers most industrial and automotive interior environments. This is the housing half of a wire-to-board or wire-to-wire connection — the matching header pins and crimp contacts are ordered separately.
10 Circuits, Dual-Row, 0.100" Pitch — What That Means for the Build
The 10-position count on a dual-row layout gives you five circuits per row. The dual-row arrangement halves the connector length compared to a single-row 10-position housing, which helps when routing the harness bundle into a tight enclosure.
Contacts Not Included — What to Order Separately
The 926209-5 ships as an empty housing. The female socket crimp terminals that lock into these cavities are ordered under a separate part number — the exact TE terminal depends on the wire gauge you're terminating. Confirm the contact part number against your wire size before committing the BOM line for the full assembly.
