TE Connectivity AMP Connectors 926475-5 — Connector Housings

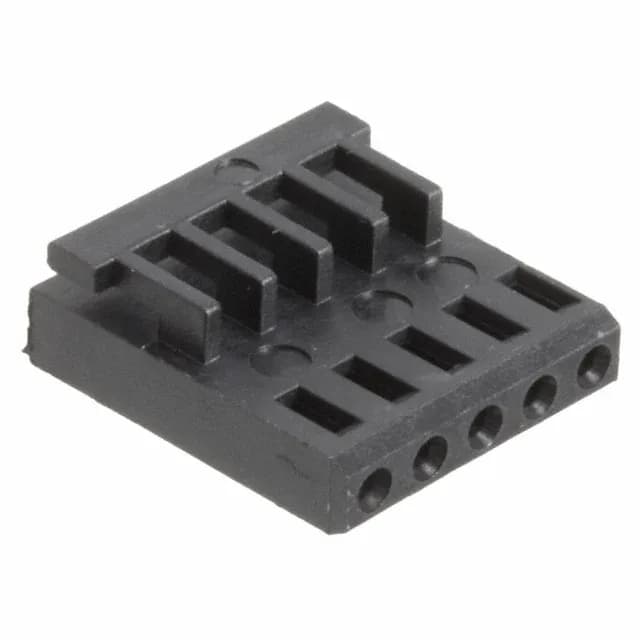

TE Connectivity 926475-5 AMPMODU Mod IV Receptacle Housing

MPN926475-5
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 5 positions, 0.100" (2.54mm) pitch, single row, crimp termination, free-hanging, black PBT housing, -65°C to 105°C.

$1.0700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 926475-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

926475-5 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions5

Product details

Key Specs at a Glance

This housing is a receptacle — it mates with a male pin header (typically an AMPMODU Mod IV or compatible 0.100" pitch header). The single-row, 5-position layout is common for sensor connectors, small harness breakouts, or power/signal distribution in tight spaces. The black colour and glass-filled PBT insulation material provide good chemical resistance and dimensional stability in high-humidity or mildly corrosive environments.

The AMPMODU Mod IV terminal family (e.g., TE part numbers 1-87456-0 or similar) is the intended mate.

Frequently asked questions

Is the 926475-5 a male or female connector?

The 926475-5 is a receptacle housing that accepts female socket contacts. It is the female half of the mating pair.

What contacts are compatible with the 926475-5?

The housing accepts AMPMODU Mod IV female socket crimp terminals (contacts not included). The exact terminal part number depends on wire gauge; consult the AMPMODU Mod IV terminal family datasheet for the correct fit.
