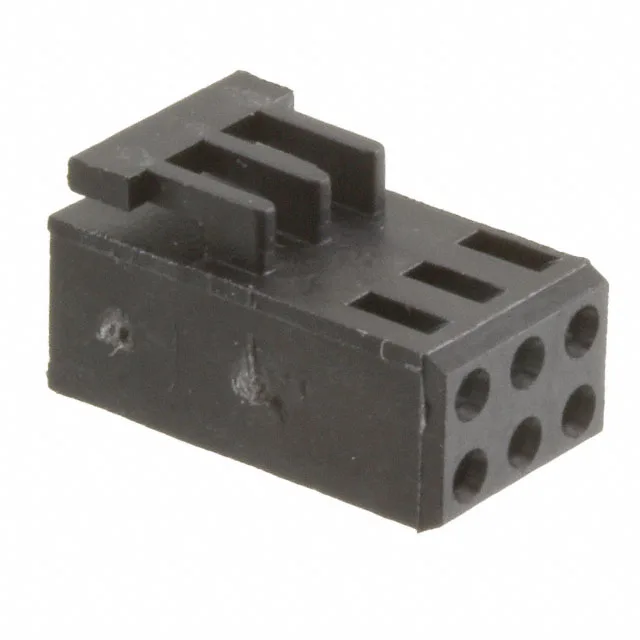

Six-Circuit Receptacle Housing for AMPMODU Mod IV Harnesses
What Contacts Fit This Housing?
The 926476-3 is a receptacle housing only — it requires separate crimp-type female socket contacts to be loaded into the cavities. The AMPMODU Mod IV series uses a standard contact interface; the exact compatible terminal part number depends on the wire gauge and plating requirement. For a typical 22-26 AWG application, the TE 1-87175-0 or similar AMPMODU Mod IV female crimp contact is the usual match. Confirm the contact order code against the wire size and desired plating (tin for standard duty, gold for higher mating cycle counts) before committing the BOM line.
How It Compares to a Higher-Density Sibling
The 1-2333134-5 is a 30-position, dual-row receptacle housing on a tighter 0.079" (2.00 mm) pitch with a locking ramp. The 30-position sibling suits high-density harnesses where board space is tight; the 6-position 926476-3 is the better fit for a low-circuit-count power or signal tap where the wider pitch simplifies routing and termination.
