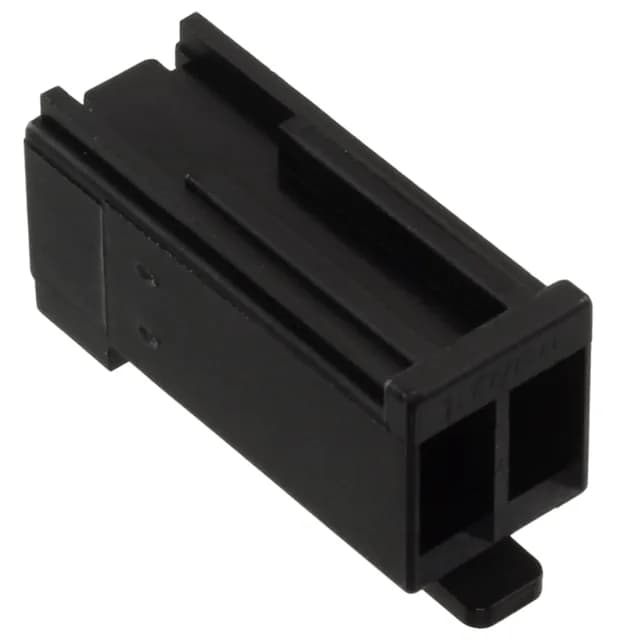

The TE Connectivity 928247-2 is a 2-position receptacle housing from the Standard Timer series, designed as the wire-side half of a crimp-and-poke interconnect system. The 5.00mm pitch gives enough spacing for 14-18 AWG power circuits without crowding the terminal cavity, and the single-row layout keeps the harness narrow where bundle diameter matters. The latch lock on the housing face provides audible positive retention when mated with the matching header — the kind of feedback a harness builder listens for on the line.
The One Thing That Trips Up Buyers
Contacts are not included with this housing. The 928247-2 ships as an empty cavity shell — you order the female socket crimp terminals separately, sized to your wire gauge. The PA66 insulation carries a -40°C to 110°C operating range, so the housing itself handles underhood and industrial cabinet temperatures; the terminal's temperature class then becomes the system limit once crimped.
