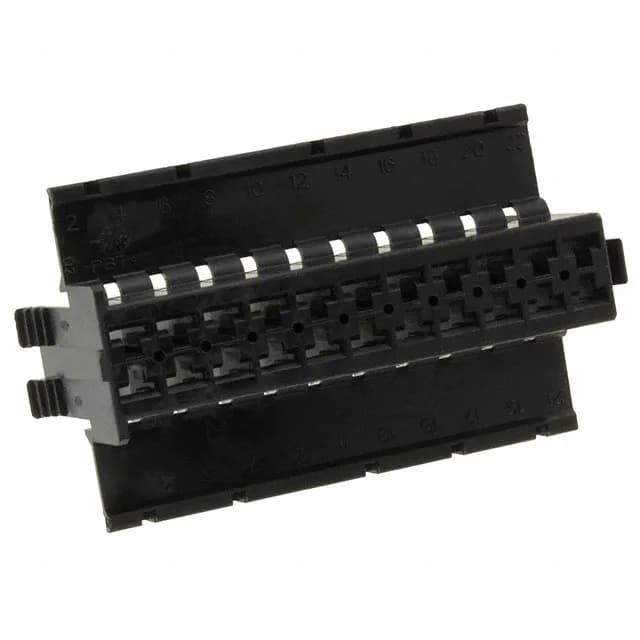

22-Position Receptacle Housing for Harness Builds
The 5.00 mm pitch and 5.60 mm row spacing set the footprint for the mating header and the wire bundle layout — the 22 circuits match a 22-way BOM line, and the dual-row arrangement keeps the connector width manageable for harness routing.
For a 22-position, 2-row receptacle, that gives a mating face roughly 50 mm wide (22 positions × 5.00 mm / 2 rows). The row spacing of 5.60 mm adds another 5.60 mm to the connector height. This pitch is standard for the Junior Power Timer series — it provides enough creepage for 12 V to 48 V automotive and industrial power circuits without forcing an oversized connector body. Compare with the 2.00 mm pitch of the 1-2333134-5 (30 positions in the same footprint class) — the 929504-7 trades position density for wider terminals that can carry higher current per circuit.
Crimp Termination — Contacts Are Ordered Separately
The crimp termination gives a gas-tight connection suitable for high-vibration environments; the PBT housing holds the terminal in place with a primary latch. For a complete mated pair, order the matching male header (same series, same pitch and row count) and the correct wire-gauge crimp contacts separately.
