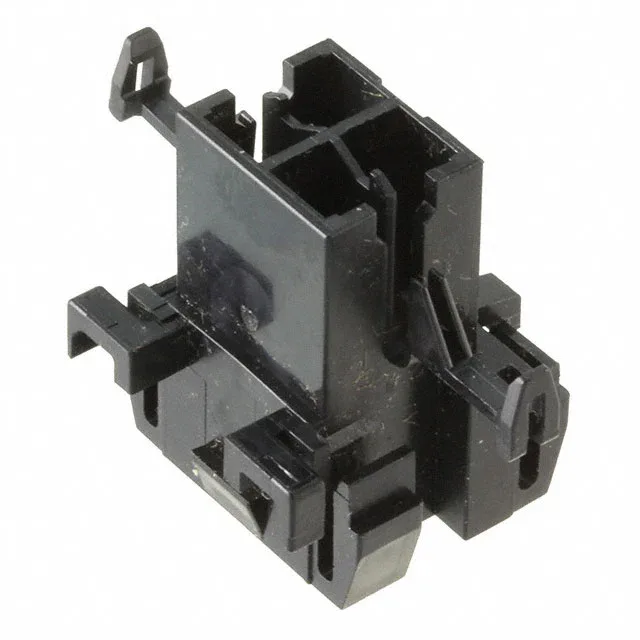

4-position plug housing for Junior Power Timer
The 929505-1 is a 4-position plug housing from the Junior Power Timer series, built for wire-to-board connections in automotive and industrial harnesses. It carries a 5.00mm pitch and dual rows spaced 5.60mm apart, which matches the footprint of the Junior Power Timer header family. The housing is black PBT (Polybutylene Terephthalate), a material that handles under-hood temperatures and resists common automotive fluids.
Termination and mating — contacts sold separately
Mounting type is free hanging (in-line), so the housing sits loose on the harness and mates directly to a board-mounted header. No panel cutout or screw-down required.
