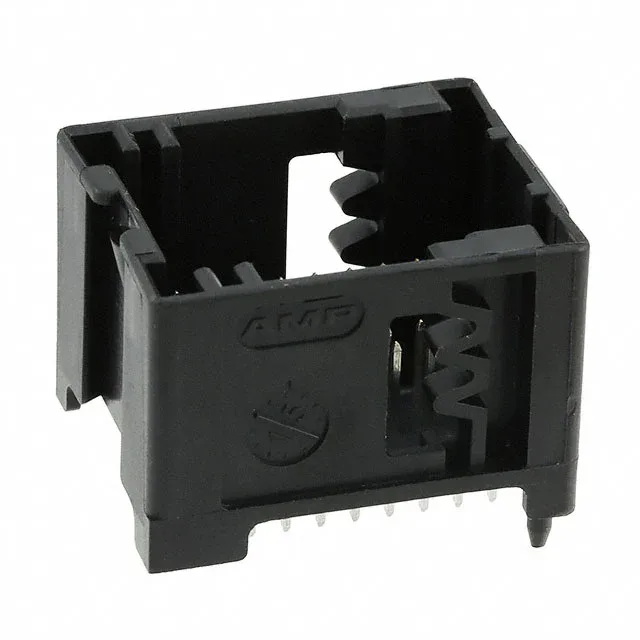

TE Connectivity AMP Connectors Micro Quadlok header, 953118-1, 40 positions, 2.54 mm pitch, shrouded 4-wall, friction lock, through-hole solder, tin-plated contacts, -40°C to 85°C, automotive-grade.
953118-1 TE Connectivity Micro Quadlok Header 40 Pos 2.54mm
MPN953118-1
Active
TE Connectivity AMP Connectors Micro Quadlok header, 953118-1, 40 positions, 2.54 mm pitch, shrouded 4-wall, friction lock, through-hole solder, tin-plated contacts, -40°C to 85°C, automotive-grade.
$4.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro Quadlok
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~85°C |
| Insulation color | Black |
| Insulation height | 0.846\" (21.50mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 4 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
Product details
Frequently asked questions
Where can I buy 953118-1?
Submit an RFQ for current availability and pricing — no stock-holding claim is made on this listing.
Is 953118-1 RoHS compliant?
Yes, the 953118-1 is ROHS3 compliant per the manufacturer's designation.
What is the mating connector for 953118-1?
The 953118-1 is a header (male pins) that mates with a Micro Quadlok receptacle housing and crimp terminals. The mating half is a 40-position, 4-row receptacle from the same series — confirm the specific receptacle part number against the harness design.
What is the pitch of 953118-1?
The mating pitch is 0.100" (2.54 mm), standard for this series and compatible with common board layouts.
