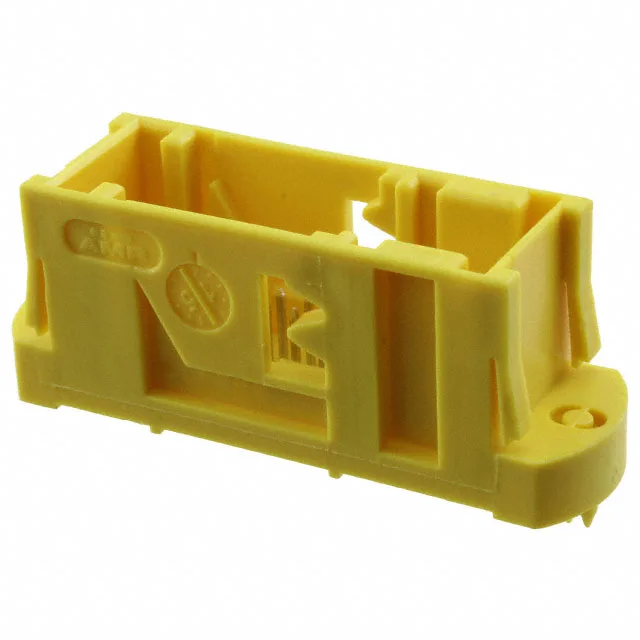

TE Connectivity AMP Connectors Micro Quadlok header, order code 953236-1, 26 positions, dual row, 2.54 mm pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, latch lock.
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Yellow |
| Insulation height | 0.823\" (20.90mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.128\" (3.25mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
The 953236-1: The glass-filled PBT insulation is rated for -40°C to 85°C, and the header includes a board guide and board lock for secure through-hole solder mounting.
TE Connectivity AMP Connectors has placed the 953236-1 under Last Buy status — orders are accepted while inventory lasts, with no guaranteed future production.
953236-1 is supplied by TE Connectivity AMP Connectors.
The style is Board to Cable/Wire. The series is Micro Quadlok.
