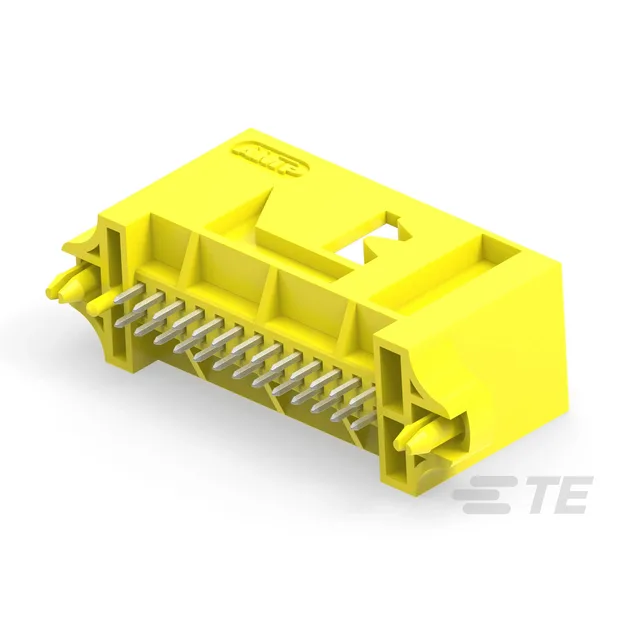

26-position 2.54mm pitch header for automotive wire-to-board
A friction lock provides retention against vibration once mated with the corresponding receptacle — no secondary latch needed, which simplifies assembly in confined harness routings.
Tin-plated contacts and board lock retention
The 0.264" (6.70mm) mating contact length ensures full wipe and reliable connection with the receptacle terminals.
Peer comparison: position count options in Micro Quadlok
Within the Micro Quadlok series, the 953440-3 offers the same 2-row, 2.54mm pitch, friction lock, and tin contacts, but in a 6-position configuration. The 1379030-3 provides 12 positions. For higher-density harnesses, the 26-position 953472-1 is the full-populated option. The 1-1871673-2 is a different series (1871673) with 2.50mm pitch and a detent lock, not a direct fit for Micro Quadlok receptacles.
