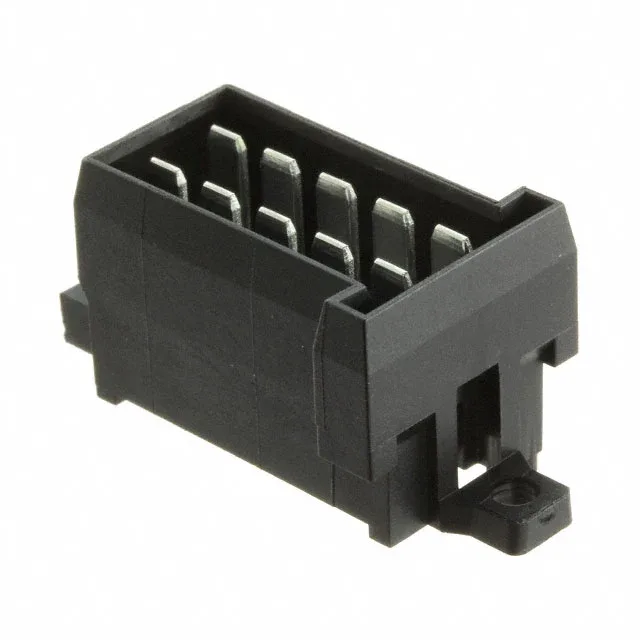

The 5.00mm pitch and 5.51mm row spacing give each circuit room to carry power without crowding the board layout. The rectangular tab contacts are silver-plated — a finish that handles higher current densities than tin and resists oxidation in warm underhood or industrial environments. A board guide and mounting flange on the shroud align the header during PCB insertion and anchor it against cable pull, which matters when the mating half is a crimp housing that gets handled in assembly.
Footprint and board fit
The mating pin length is 9.30mm, so the receptacle housing engages fully before the latch clicks. Insulation height is 18.30mm above the board — account for this z-height when the header sits near a cover or another tall component. The glass-filled PBT housing (UL94 V-0 rated by series standard) handles reflow and wave-solder profiles without distortion.
ROHS3 compliant. The base product number is 963357; this variant carries silver-plated contacts in a black housing.
