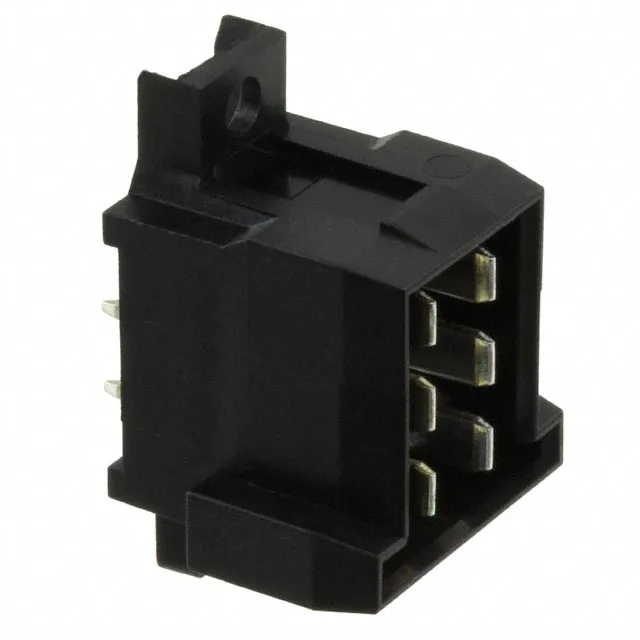

TE Connectivity AMP Connectors Junior Power Timer header, 6 positions, 2 rows, 5.00 mm pitch, through-hole solder termination, silver-plated tab contacts, black PBT housing with mounting flange and board guide.
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Plug |
| Contact material | Copper Zinc |
| Insulation color | Black |
| Insulation height | 0.720\" (18.30mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Mounting Flange |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.217\" (5.51mm) |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Silver |
| Contact length - mating | 0.366\" (9.30mm) |
Its 5.00 mm pitch and 5.51 mm row spacing give the PCB layout room for routing higher-current traces between the two rows. In a panel or enclosure where the wire bundle is dressed and tied off, this keeps the through-hole posts from fatiguing.
The 963357-5's wider 5.00 mm pitch and silver-plated rectangular tabs suit higher-current or more frequent mating cycles than the 953440-3's signal-density footprint.
The mating pitch is 0.197" (5.00 mm) with a row-to-row spacing of 0.217" (5.51 mm).
Yes, the header includes a mounting flange and a board guide to secure it to the PCB and reduce strain on the solder joints.
