This receptacle mates with a Standard Timer plug housing that carries tab-type contacts. The free-hanging (in-line) mount means both halves sit in the harness, not on a panel or board. Because contacts are not included, you need to source the matching crimp terminals separately — typically a 0.110-inch (2.80 mm) or 0.187-inch (4.75 mm) tab receptacle terminal, depending on the current draw. The 2-position housing is keyed by the cavity shape; there is no secondary locking ramp, so terminal retention depends entirely on the contact lance seating into the housing window.

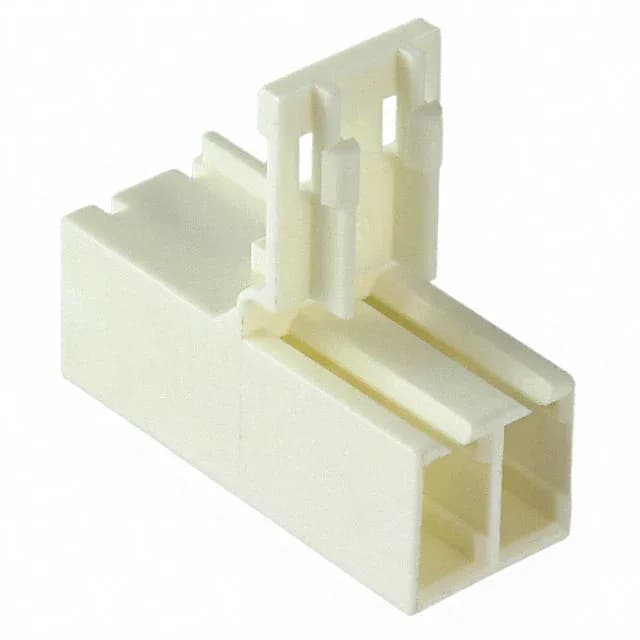

TE Standard Timer 964768-3 Receptacle Housing, 2 Pos 5.00mm
MPN964768-3
Active
TE Connectivity Standard Timer series, 964768-3, receptacle housing, 2 circuits, 1 row, 5.00mm pitch, free-hanging (in-line), crimp termination, natural PA66, contacts not included.
$0.6800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStandard Timer
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Standard Timer |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -40°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
Product details
Frequently asked questions
Where can I buy 964768-3 and get a price?
Submit a request for the quantity you need.
Does 964768-3 include contacts?
No — the listing explicitly notes Contacts Not Included. The housing ships empty; you must order the matching Standard Timer crimp terminals separately.
What is the pitch of 964768-3?
The 964768-3 uses a 5.00 mm pitch between contact cavities, which is the standard spacing for the Standard Timer series and accommodates power wiring without crowding.
