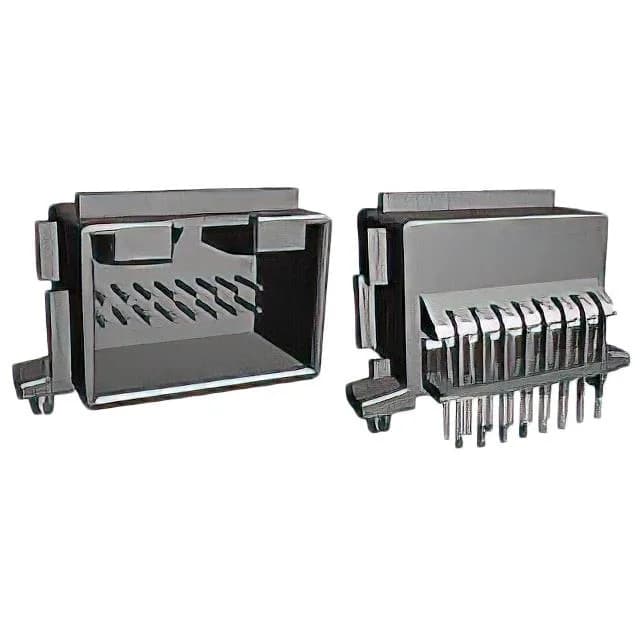

TE Connectivity AMP Connectors Micro Quadlok header, order code 966870-1, 16 positions, dual row, 0.100" (2.54mm) pitch, board-to-cable/wire, tin-plated male pins, through-hole right-angle, solder termination, shrouded - 4 wall, friction lock, board lock.
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.772\" (19.60mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.236\" (6.00mm) |
The 966870-1: The tin-plated mating contacts and shrouded 4-wall housing with friction lock and board lock suit the part for automotive harness applications where the connector must resist vibration and mis-mate.
The 966870-1 is a 16-position, dual-row header with all positions loaded, arranged in a 2x8 grid.
The mating connector is a Micro Quadlok receptacle housing that accepts crimp terminals.
Within the same series, the 6-position 953440-3 and 12-position 1379030-3 share the same pitch, orientation, and lock type but differ in circuit count. The 1-1871673-2 is not a direct equivalent due to different pitch (2.50mm) and lock type.
