Board-to-board receptacle with 0.100-inch pitch and gold contacts

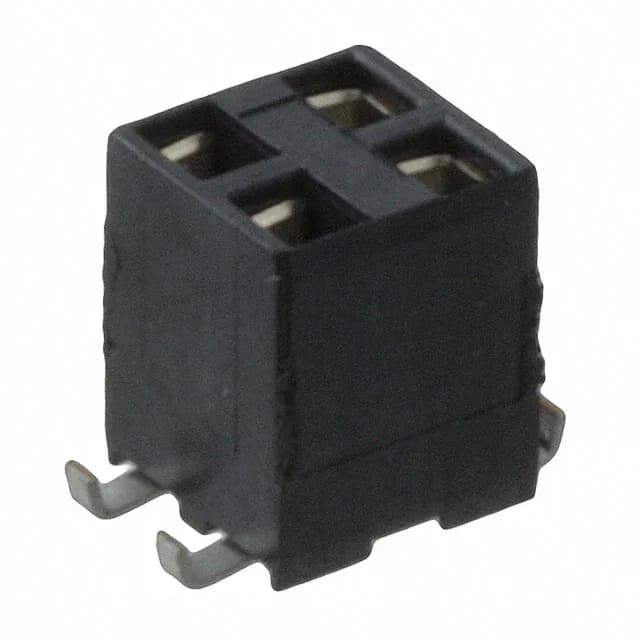

The 969973-2 is a 4-position, dual-row receptacle from the AMPMODU HV-100 series, designed for board-to-board stacking. The SMT termination suits automated pick-and-place lines.
This receptacle accepts 0.025" (0.64 mm) square pins on 0.100" row and column spacing. The bottom or top entry design lets you orient the receptacle either way on the board, which helps when the stacking height is tight. The SMT footprint is straightforward: two rows of four pads at 0.100" pitch.
