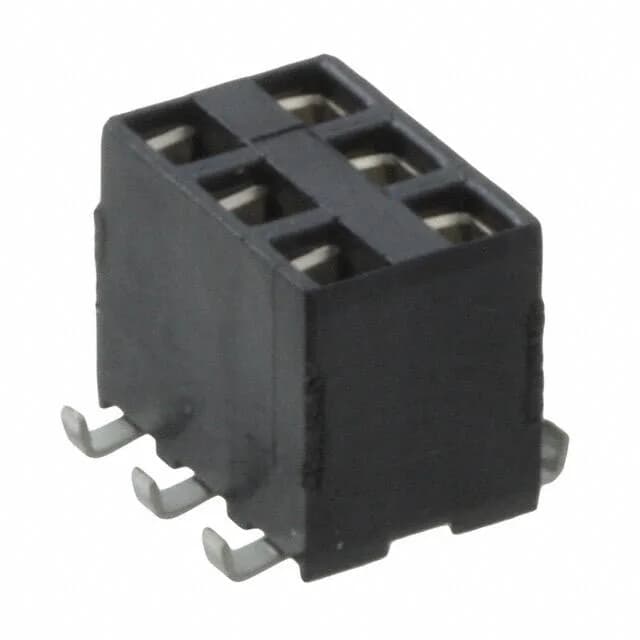

TE Connectivity AMPMODU HV-100, 969973-3, 6-position dual-row receptacle, 0.100" (2.54 mm) pitch, gold-plated mating contacts, surface-mount solder termination, black LCP housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 969973-3: The surface-mount termination (SMT) allows reflow soldering alongside other board components, reducing assembly steps.
This receptacle accepts a 0.100" pitch dual-row pin header (male) with square pins. The connector accepts bottom or top entry, meaning the mating header can approach from either side of the PCB — useful for mezzanine stacking where the receptacle sits on the bottom board and the header on the top board.
This is a standard dual-row footprint that mates with any 0.100" pitch pin header.
The insulation height is 0.244" (6.20 mm). This is the height of the receptacle body above the board surface, not including the solder tails. The mated stack height depends on the pin header's mating length.
