TE Connectivity AMP Connectors NC6-P107-03
MPNNC6-P107-03
Active

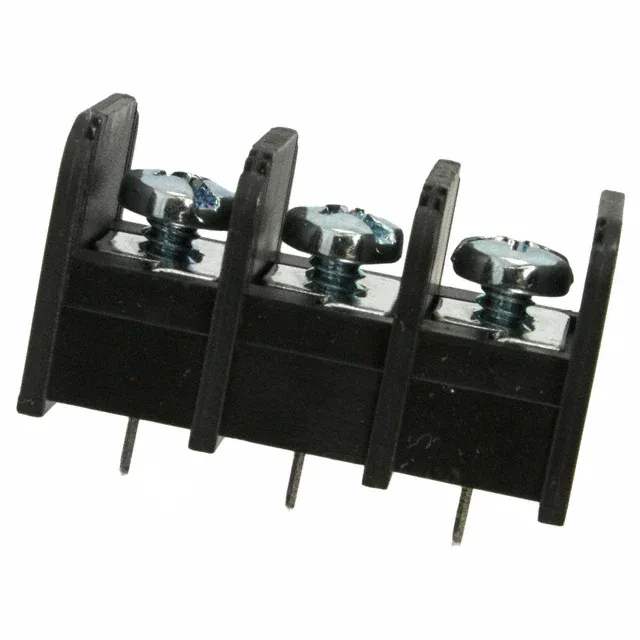

CONN BARRIER STRIP 3CIRC 0.375"
$3.05Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesNC6, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NC6, Buchanan |
| Barrier type | 2 Wall (Dual) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 20A |
| Wire gauge | 12-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 3 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws |
| Bottom termination | PC Pin |
| Number of circuits | 3 |
