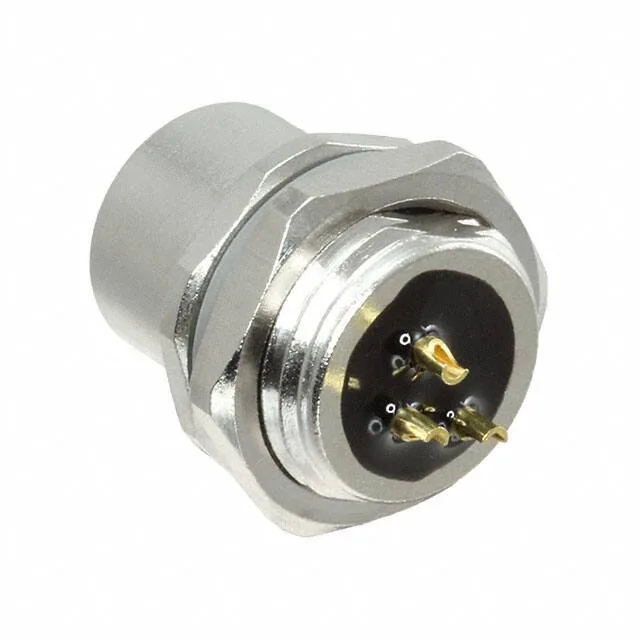

TE Connectivity AMP Connectors T4133012031-000
MPNT4133012031-000
Active
CONN PLUG FMALE 3POS SOLDER CUP
$6.54Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M12 |
| Mounting | Panel Mount |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 250V |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Copper Alloy |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Solder Cup |
| Applications | Industrial |
| Shell finish | Nickel |
| Positions | 3 |
| Shell size - insert | M12-3 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
