1734260-3
TE Connectivity AMP Connectors
3Surface Mount-25°C~85°C
Ref. price$1.4200
Lead time on requestGet quote
TE Connectivity AMP Connectors 1734 Pin Headers Series
9 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1734 Pin Headers Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for TE Connectivity AMP Connectors 1734 Pin Headers Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The TE Connectivity AMP Connectors 1734 Pin Headers Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of Automotive, General Purpose, Industrial, Medical, connector type of Header and contact finish - mating of Tin. Variants differ by contact finish thickness - mating, contact shape and insulation height, so you can match the exact contact finish thickness - mating your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1734 Pin Headers Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness - mating
- 100.0µin (2.54µm) · 150.0µin (3.81µm)
- Contact shape
- Rectangular · Square
- Insulation height
- 0.136\" (3.46mm) · 0.187\" (4.75mm)
- Mounting
- Surface Mount · Surface Mount, Right Angle
- Operating temperature
- -25°C ~ 85°C · -25°C~85°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Positions

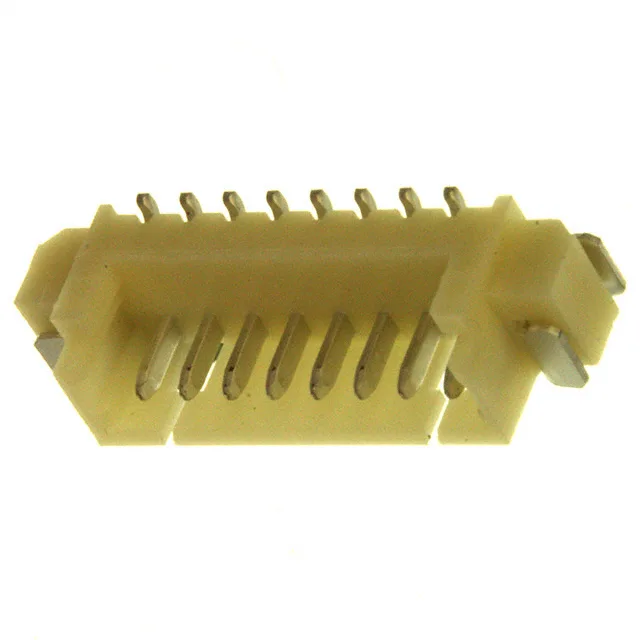

- 2 · 3 · 4 · 5 · 6 · 7 · 8
- Shrouding
- Shrouded - 3 Wall · Shrouded - 4 Wall
Shared specifications
- Applications
- Automotive, General Purpose, Industrial, Medical
- Connector type
- Header
- Contact finish - mating
- Tin
- Contact finish - post
- Tin
- Contact finish thickness - post
- -
- Contact length - mating
- -
- Contact length - post
- -
- Contact material
- Phosphor Bronze
- Current rating
- 1A
- Fastening type
- -
- Features
- Solder Retention
- Insulation color
- Natural
Variant comparison

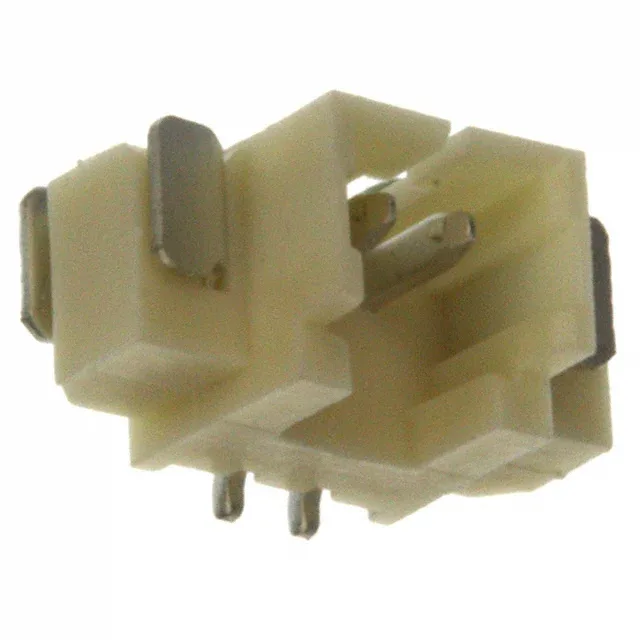

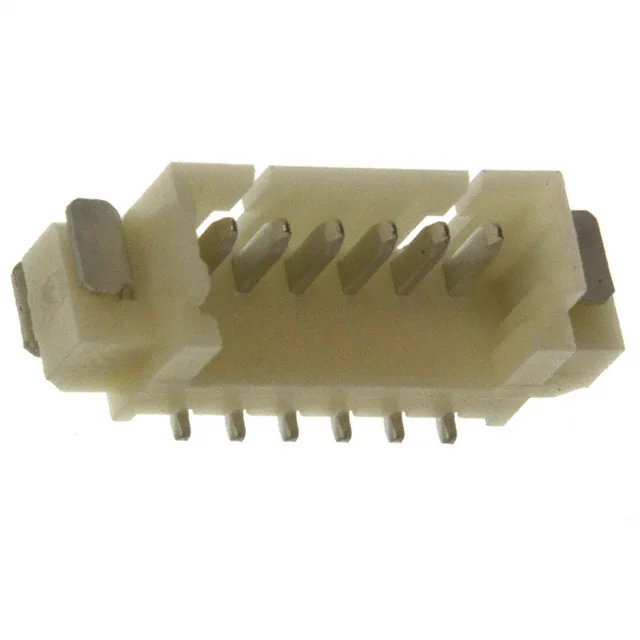

| Parameter | 1734260-2 | 1734260-3 | 1734260-4 | 1734260-5 | 1734260-6 | 1734260-7 |
|---|---|---|---|---|---|---|
| Contact finish thickness - mating | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) |
| Contact shape | Square | Square | Square | Square | Square | Square |
| Insulation height | 0.187\" (4.75mm) | 0.187\" (4.75mm) | 0.187\" (4.75mm) | 0.187\" (4.75mm) | 0.187\" (4.75mm) | 0.187\" (4.75mm) |
| Mounting | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | -25°C ~ 85°C | -25°C~85°C | -25°C ~ 85°C | -25°C~85°C | -25°C ~ 85°C | -25°C~85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Positions | 2 | 3 | 4 | 5 | 6 | 7 |
| Shrouding | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall |
Request a quote on any TE Connectivity AMP Connectors 1734 Pin Headers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
