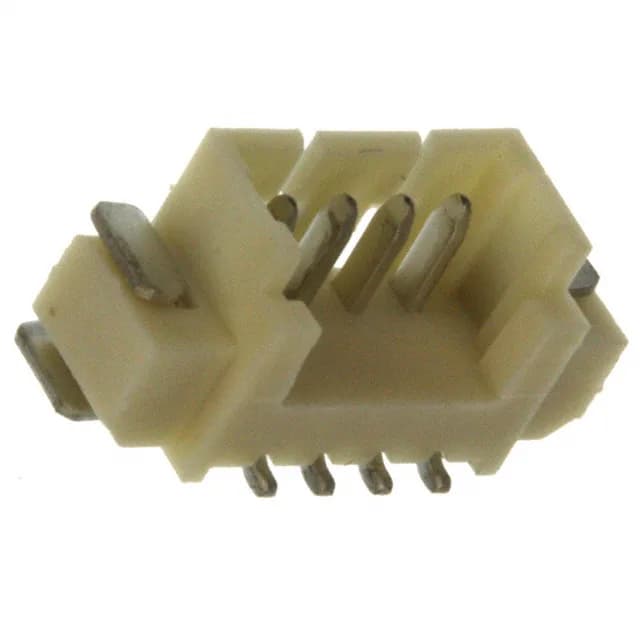

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1734260-4, Board to Cable/Wire pin header, SMD, 4 positions, 1.25mm pitch, shrouded 3-wall, tin-plated contacts, rated 1A at 125V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.187\" (4.75mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Rated at 1 A per contact and 125 V, this header suits low-power signal connections in automotive, general purpose, industrial, and medical equipment — the 1 A current limit is the practical ceiling for the 1.25 mm pitch and tin-plated contacts.
The 1734260-4 has a 1.25 mm (0.049") mating pitch, single row, 4 positions.
Yes, the 1734260-4 is a surface-mount (SMT) header with solder termination and solder retention features for reflow assembly.
It belongs to the TE Connectivity High Performance Interconnect (HPI) series, a family of compact board-to-cable/wire headers.
The datasheet lists automotive, general purpose, industrial, and medical applications. The 1 A/125 V rating and -25°C to 85°C range suit low-power signal interconnects in those environments.
