1744017-2
TE Connectivity AMP Connectors
2-55°C~105°C0.156\" (3.96mm)
Ref. price$0.4300
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 1744 Series
77 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1744 Series
The TE Connectivity AMP Connectors 1744 Series series groups 77 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common connector type of Header, contact finish - mating of Tin and contact finish - post of Tin. Variants differ by applications, contact finish thickness - mating and contact finish thickness - post, so you can match the exact applications your application requires using the selection guide below.
Select a variant by
- Applications
- General Purpose, Industrial · General Purpose, Industrial, Lighting
- Contact finish thickness - mating
- - · 3.00µin (0.076µm) · 80.0µin (2.03µm) · 120.0µin (3.05µm)
- Contact finish thickness - post
- - · 3.00µin (0.076µm) · 80.0µin (2.03µm) · 120.0µin (3.05µm)
- Contact length - mating
- 0.303\" (7.70mm) · 0.338\" (8.59mm) · 0.400\" (10.16mm)
- Contact length - post
- 0.125\" (3.18mm) · 0.142\" (3.60mm) · 0.145\" (3.68mm) · 0.146\" (3.70mm)
- Contact material
- Brass · Copper Alloy
- Current rating
- 7.5A · Varies by Wire Gauge
- Insulation height
- 0.126\" (3.20mm) · 0.127\" (3.22mm) · 0.335\" (8.51mm) · 0.425\" (10.80mm)
Shared specifications
- Connector type
- Header
- Contact finish - mating
- Tin
- Contact finish - post
- Tin
- Contact shape
- Square
- Fastening type
- Friction Lock
- Gender
- Male Pin
- Insulation color
- Natural
- Material flammability rating
- UL94 V-0
- Package
- Bulk
- Rows
- 1
- Shrouding
- Shrouded - 1 Wall
- Style
- Board to Cable/Wire
Variant comparison

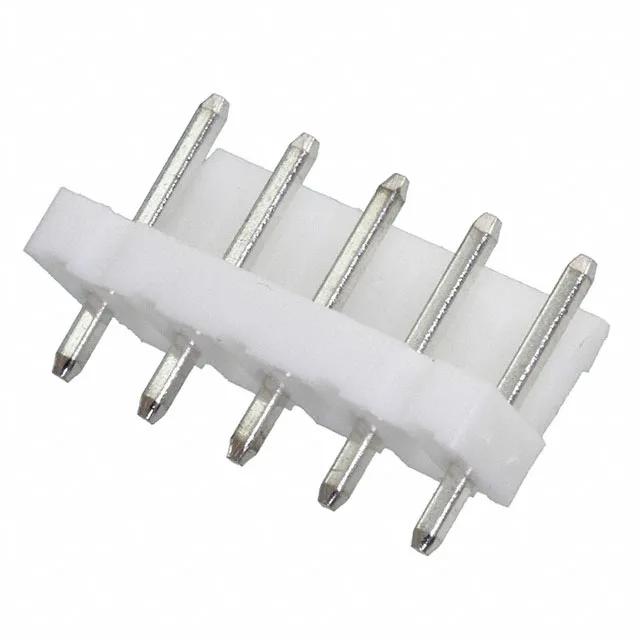

| Parameter | 1744017-2 | 1744037-2 | 1744037-3 | 1744037-4 | 1744037-5 | 1744037-6 |
|---|---|---|---|---|---|---|
| Applications | General Purpose, Industrial | General Purpose, Industrial, Lighting | General Purpose, Industrial, Lighting | General Purpose, Industrial, Lighting | General Purpose, Industrial, Lighting | General Purpose, Industrial, Lighting |
| Contact finish thickness - mating | - | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) |
| Contact finish thickness - post | - | 3.00µin (0.076µm) | 3.00µin (0.076µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) |
| Contact length - mating | 0.400\" (10.16mm) | 0.303\" (7.70mm) | 0.303\" (7.70mm) | 0.303\" (7.70mm) | 0.303\" (7.70mm) | 0.303\" (7.70mm) |
| Contact length - post | 0.125\" (3.18mm) | 0.146\" (3.70mm) | 0.146\" (3.70mm) | 0.146\" (3.70mm) | 0.146\" (3.70mm) | 0.146\" (3.70mm) |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Current rating | Varies by Wire Gauge | 7.5A | 7.5A | 7.5A | 7.5A | 7.5A |
| Insulation height | 0.425\" (10.80mm) | 0.126\" (3.20mm) | 0.126\" (3.20mm) | 0.126\" (3.20mm) | 0.126\" (3.20mm) | 0.126\" (3.20mm) |
Request a quote on any TE Connectivity AMP Connectors 1744 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 1744 Series variants differ?
- TE Connectivity AMP Connectors 1744 Series part numbers differ by applications, contact finish thickness - mating, contact finish thickness - post and contact length - mating. Use the selection guide above to pick by applications.
- How many TE Connectivity AMP Connectors 1744 Series part numbers are listed?
- 77 TE Connectivity AMP Connectors 1744 Series part numbers are listed, each with specifications and a datasheet where available.
