TE Connectivity AMP Connectors 1744057-4 — Pin Headers

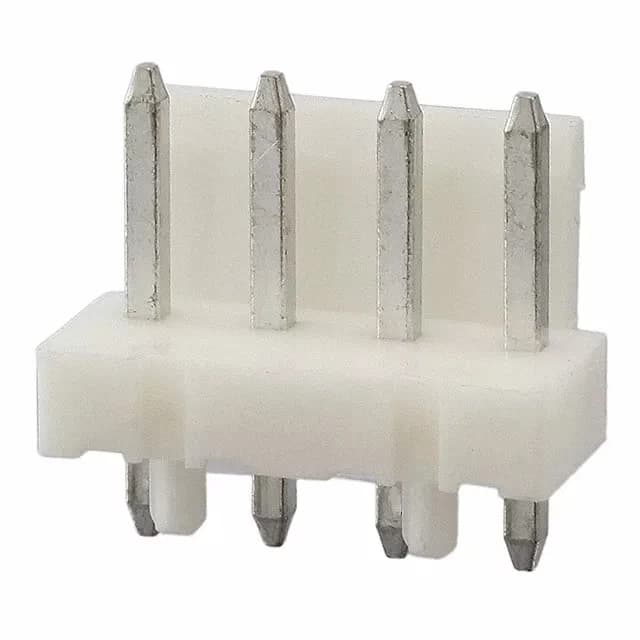

1744057-4 TE Connectivity Economy Power Header 4 Pos 3.96mm

MPN1744057-4
Active

TE Connectivity AMP Economy Power series, single-row board-to-wire header, 4 positions, 0.156" (3.96mm) pitch, 7.5A per circuit at 250VAC, tin-plated brass contacts, friction lock with board guide, UL94 V-0 PA66 housing, through-hole solder termination, -25°C to 105°C, bulk pack.

$0.4000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesEconomy Power
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1744057-4 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C~105°C
Contact materialBrass
Insulation colorNatural
Insulation height0.127\" (3.22mm)
Insulation materialPolyamide (PA66), Nylon 6/6

All specifications

1744057-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions4
Contact finish - postTin
Contact length - post0.145\" (3.68mm)
Overall contact length0.575\" (14.60mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)
Contact finish thickness - post120.0µin (3.05µm)
Contact finish thickness - mating120.0µin (3.05µm)

Product details

For higher reconnect duty, consider the gold-plated variants in the Economy Power series.

This header mates with TE Economy Power receptacle housings that accept 18-22 AWG crimp terminals.

Peer Comparison: 4-1775099-7 vs 1744057-4

The closest functional alternative is 4-1775099-7, also a 4-position, 3.96mm pitch, single-row header from the same Economy Power series. The key difference: 4-1775099-7 uses a fully shrouded housing (4 walls) versus the 1-wall shroud on 1744057-4. If your application requires full pin protection on all sides, the 4-1775099-7 is the better fit; if board-edge clearance is tight, the 1-wall shroud of 1744057-4 saves space.

Frequently asked questions

Does 1744057-4 have a friction lock?

Yes, the fastening type is friction lock.
