Economy Power right-angle header for board-to-wire power and signal

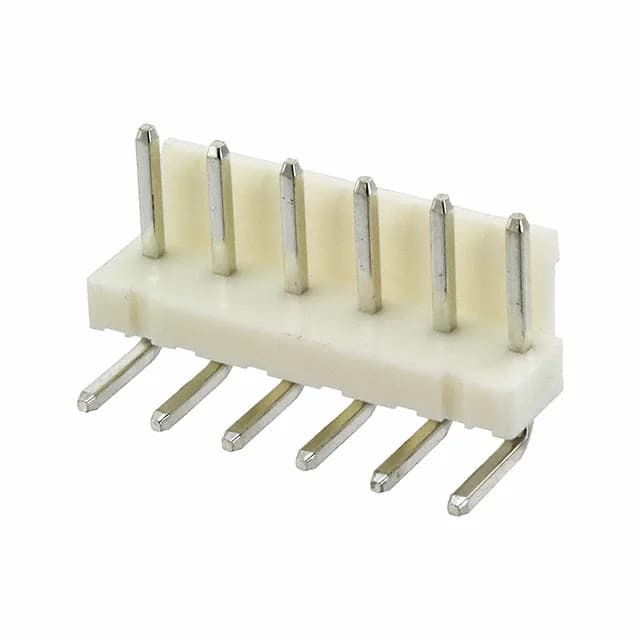

The 1744048-6 is a 6-position, single-row right-angle through-hole header from the TE Economy Power series, designed for board-to-wire applications where a friction lock keeps the mating half seated under vibration. Pitch is 5.08 mm, current rating 7.5 A per circuit at 250 VAC, and the square tin-plated pins mate with standard Economy Power crimp receptacles. Operating temperature range is -25°C to 105°C, and the PA66 housing carries a UL94 V-0 flammability rating, suiting it for general-purpose industrial and lighting applications.
Single-wall shroud and friction lock for secure mating
The header is shrouded on one wall, which guides the mating receptacle into alignment and protects the pins during handling. The friction lock engages with the mating housing's latch to resist accidental disconnection in moderate-vibration environments. Contact finish is 80.0 µin tin on both the mating surface and the solder post, providing adequate corrosion resistance for indoor, low-cycle applications.
Active production and sourcing posture
It is ROHS3 compliant and supplied in bulk packaging. Current pricing and lead time are confirmed at quote time against your BOM quantity — sourced per RFQ.
