TE Connectivity AMP Connectors 1744037-4 — Pin Headers

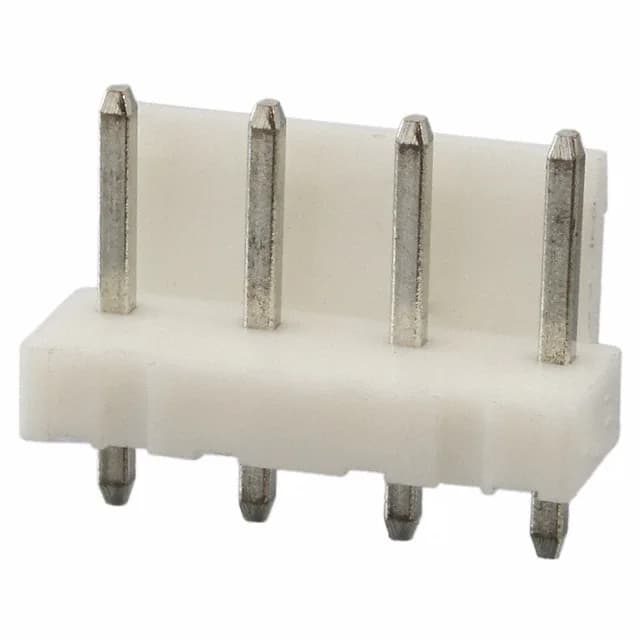

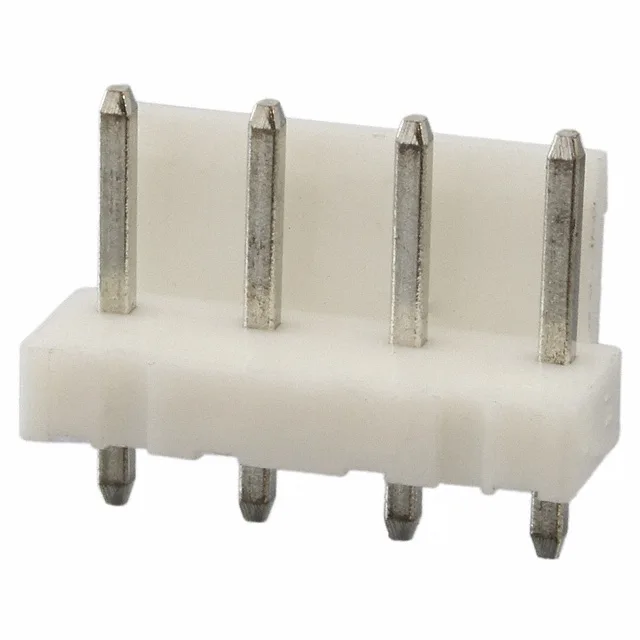

1744037-4 TE Connectivity Economy Power Header, 4 Pos

MPN1744037-4
Active

TE Connectivity AMP Connectors 1744037-4, Economy Power series, board-to-cable/wire header, 4 positions, single row, 5.08mm pitch, tin-plated copper alloy contacts rated 7.5A at 250VAC, shrouded with friction lock, through-hole solder termination, PA66 natural housing UL94 V-0, -25°C to 105°C, ROHS3 compliant.

$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEconomy Power
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1744037-4 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.126\" (3.20mm)
Insulation materialPolyamide (PA66), Nylon 6/6

All specifications

1744037-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.200\" (5.08mm)
Positions4
Contact finish - postTin
Contact length - post0.146\" (3.70mm)
Overall contact length0.575\" (14.60mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)
Contact finish thickness - post120.0µin (3.05µm)
Contact finish thickness - mating120.0µin (3.05µm)

Product details

The 1744037-4: This is a single-row, 4-position header on a 5.08mm pitch — the standard Economy Power spacing for wire-to-board applications up to 7.5A per contact. The shroud has one wall and a friction lock, so the mating receptacle clicks in and stays put under light cable strain.

What the 7.5A rating means on the bench

The 7.5A per contact rating at 250VAC is the maximum continuous current before the temperature rise hits the PA66 housing limit. Derate above 25°C ambient — the operating range goes down to -25°C and up to 105°C, but at the top end the current capacity drops. Tin-on-tin contacts are good for moderate mating cycles; if you need frequent reconnects, the gold-plated sibling in the same series holds up longer.

Frequently asked questions

What is the mating connector for 1744037-4?

The mating half is a TE Economy Power receptacle housing that accepts the corresponding crimp terminals. The friction lock on the header engages the latch on the receptacle. Confirm the circuit count and pitch match before ordering.
