1-796682-0
TE Connectivity AMP Connectors
Black0.197\" (5.00mm)Buchanan
Ref. price$5.3400
Lead time on requestGet quote ›

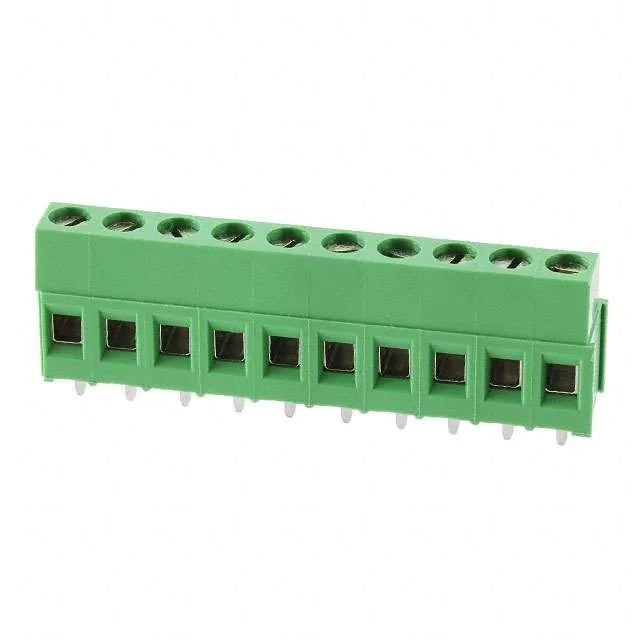

TE Connectivity AMP Connectors 1796 Series
16 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1796 Series
The TE Connectivity AMP Connectors 1796 Series series groups 16 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact material - plating of Brass - Tin Plated, current of 17.5 A and features of Interlocking (Side). Variants differ by clamp material - plating, color and mating orientation, so you can match the exact clamp material - plating your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1796 Series part numbers are active and orderable.
Select a variant by
- Clamp material - plating
- Brass - Nickel Plated · Brass - Tin Plated
- Color
- Black · Green
- Mating orientation
- 35° (145°) Angle with Board · Horizontal with Board
- Pitch
- 0.197\" (5.00mm) · 0.200\" (5.08mm)
- Positions per level
- 10 · 11 · 12 · 13 · 16
Shared specifications
- Contact material - plating
- Brass - Tin Plated
- Current
- 17.5 A
- Features
- Interlocking (Side)
- Housing material
- Polyamide (PA66), Nylon 6/6
- Mounting type
- Through Hole
- Number of levels
- 1
- Operating temperature
- -
- Package
- Bulk
- Screw material - plating
- Brass - Nickel Plated
- Screw thread
- M3
- Torque - screw
- 0.79 Nm (7.0 Lb-In)
- Voltage
- 300 V
Variant comparison
| Parameter | 1-796682-0 | 1-796682-1 | 1-796682-2 | 1-796683-0 | 1-796683-6 | 1-796689-0 |
|---|---|---|---|---|---|---|
| Clamp material - plating | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Nickel Plated | Brass - Tin Plated |
| Color | Black | Black | Black | Green | Green | Black |
| Mating orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | 35° (145°) Angle with Board |
| Pitch | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) |
| Positions per level | 10 | 11 | 12 | 10 | 16 | 10 |
Request a quote on any TE Connectivity AMP Connectors 1796 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 1796 Series variants differ?
- TE Connectivity AMP Connectors 1796 Series part numbers differ by clamp material - plating, color, mating orientation and pitch. Use the selection guide above to pick by clamp material - plating.
- How many TE Connectivity AMP Connectors 1796 Series part numbers are listed?
- 16 TE Connectivity AMP Connectors 1796 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 1796 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 1796 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
