2-320093-1
TE Connectivity AMP Connectors
Brazed Seam, Serrated Termination0.031\" (0.79mm)Non-Insulated
Ref. price$0.3900
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 2320 Series
26 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 2320 Series
The TE Connectivity AMP Connectors 2320 Series series groups 26 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Tin, contact material of Copper and mounting type of Free Hanging (In-Line). Variants differ by color, features and insulation, so you can match the exact color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 2320 Series part numbers are active and orderable.
Select a variant by
- Color
- - · Blue · Blue, Green Stripe · Red · Red, Green Stripe · Yellow · Yellow, Yellow Stripe
- Features
- Brazed Seam, Serrated Termination · Insulation Restriction · Insulation Restriction, Serrated Termination · Serrated Termination
- Insulation
- Insulated · Non-Insulated
- Insulation diameter
- - · 0.038\" ~ 0.110\" (0.97mm ~ 2.79mm) · 0.078\" ~ 0.130\" (1.98mm ~ 3.30mm) · 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) · 0.095\" ~ 0.200\" (2.41mm ~ 5.08mm) · 0.105\" ~ 0.150\" (2.67mm ~ 3.81mm) · 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) · 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm)
- Length - overall
- 0.669\" (16.99mm) · 0.765\" (19.43mm) · 0.797\" (20.24mm) · 0.859\" (21.82mm) · 1.083\" (27.51mm) · 1.140\" (28.96mm) · 1.218\" (30.94mm) · 1.280\" (32.51mm) · 1.322\" (33.58mm) · 1.392\" (35.36mm)
- Material - insulation
- - · Polyamide (PA), Nylon
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT)
Shared specifications
- Contact finish
- Tin
- Contact material
- Copper
- Mounting type
- Free Hanging (In-Line)
- Termination
- Crimp
Variant comparison

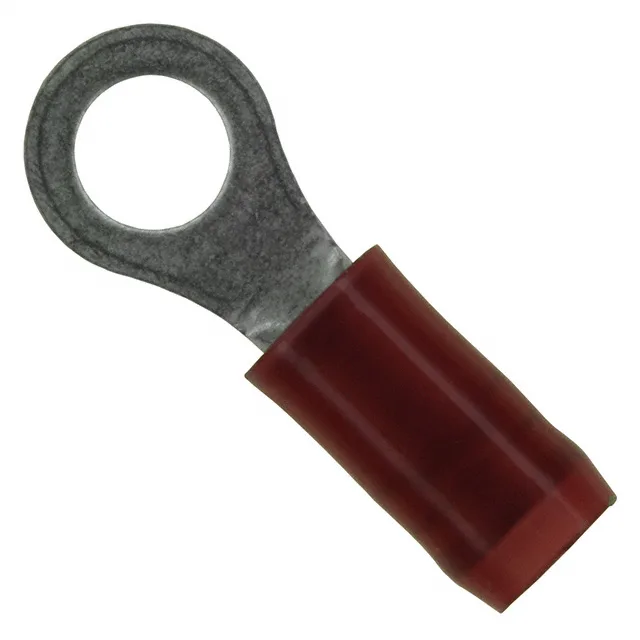

| Parameter | 2-320093-1 | 2-320306-1 | 2-320554-1 | 2-320560-1 | 2-320561-4 | 2-320564-2 |
|---|---|---|---|---|---|---|
| Color | - | Blue | Red | Blue | Blue, Green Stripe | Blue, Green Stripe |
| Features | Brazed Seam, Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Insulation Restriction | Insulation Restriction, Serrated Termination |
| Insulation | Non-Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Insulation diameter | - | 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) | 0.105\" ~ 0.150\" (2.67mm ~ 3.81mm) | 0.078\" ~ 0.130\" (1.98mm ~ 3.30mm) | 0.078\" ~ 0.130\" (1.98mm ~ 3.30mm) |
| Length - overall | 0.669\" (16.99mm) | 0.859\" (21.82mm) | 0.797\" (20.24mm) | 0.859\" (21.82mm) | 0.765\" (19.43mm) | 1.280\" (32.51mm) |
| Material - insulation | - | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Bulk | Bulk |
Request a quote on any TE Connectivity AMP Connectors 2320 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 2320 Series variants differ?
- TE Connectivity AMP Connectors 2320 Series part numbers differ by color, features, insulation and insulation diameter. Use the selection guide above to pick by color.
- How many TE Connectivity AMP Connectors 2320 Series part numbers are listed?
- 26 TE Connectivity AMP Connectors 2320 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 2320 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 2320 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
