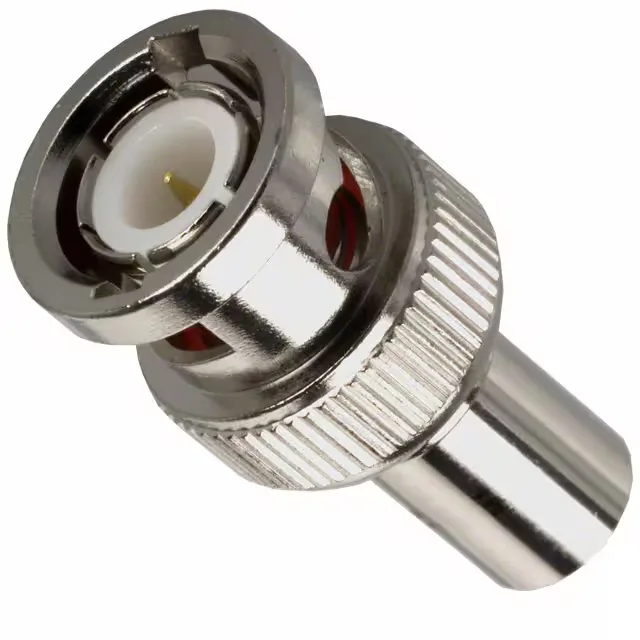

The 000-46650-75RFX: The 75 Ohm impedance targets video, CCTV, and broadcast applications where standard 50 Ohm RF connectors would create an impedance mismatch. The plug mounts on the cable end via a free-hanging cap style, meaning it terminates the cable directly rather than through a panel or PCB. Gold contact finish on the pin provides corrosion resistance for reliable signal transfer over repeated connect-disconnect cycles in field installations. The nickel-plated body offers basic environmental protection for the connector shell.
Impedance and Application Fit
The 75 Ohm impedance rating is the key selection parameter here — it tells you this is a video-grade BNC, not the 50 Ohm version used in RF/data comms. Mating this plug with a 50 Ohm cable or receptacle will introduce a return loss at the interface. It is compatible with RG59 and similar 75 Ohm coax cables commonly run in analog video, CCTV, and baseband video distribution. The male pin interface mates with a standard BNC female jack or bulkhead receptacle of the same impedance.
The free-hanging cap mounting means the connector body threads onto the prepared cable end after the centre contact is crimped or soldered to the conductor. The male pin is gold-plated for low and stable contact resistance. The nickel body finish is standard for indoor and protected outdoor use; it resists corrosion but is not rated for submersion. Supplied in Bulk packaging — loose pieces, not tape-and-reel or cut strips.
