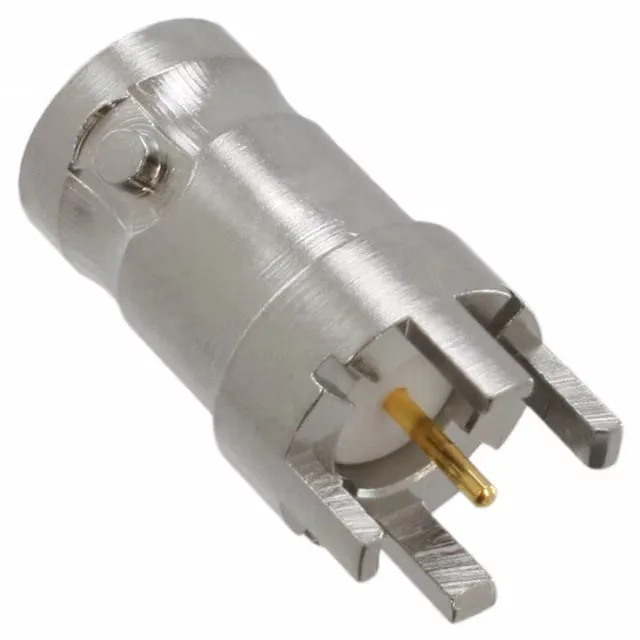

The 031-5329-72RFX: It mates with any standard 75 Ohm BNC plug via the bayonet lock, giving you a positive twist-and-lock connection that holds against cable tug. The through-hole solder termination suits PCB mounting where the signal path stays clean to 4 GHz. The nickel-plated brass body handles the shield termination, soldered directly to the board ground plane.
Amphenol RFI BNC jack, female socket, 75 Ohm, 4 GHz, through-hole solder, gold centre contact, nickel brass body, bayonet lock, 1 port, bulk.
$5.0000Ref. price · indicative, final on quote
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
What is the frequency range of 031-5329-72RFX?
This covers SDI video, baseband telecom, and instrumentation signals up to 4 GHz.
