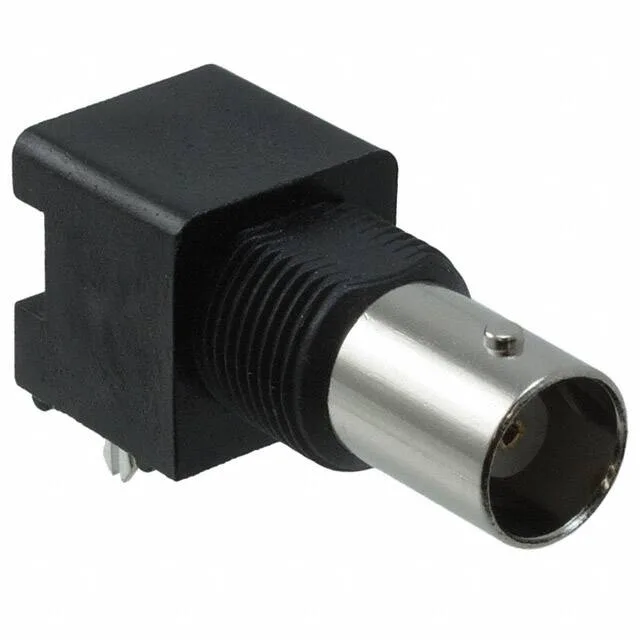

031-5538-1010 BNC Jack, 50 Ohm, 1 GHz, Right Angle

MPN031-5538-1010
Active

BNC jack, female socket, 50 Ohm, 1 GHz max, 500 mating cycles, panel mount / through-hole right angle, solder termination, gold centre contact, board lock, isolated.

$5.6600Ref. price · indicative, final on quote
031-5538-1010 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-5538-1010 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C~85°C
Body materialZinc Die Cast
Housing colorBlack, Silver
Dielectric materialPolypropylene (PP)
Center contact materialPhosphor Bronze
PackageTray
FeaturesBoard Lock, Isolated
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

50 Ohm BNC Jack with Board Lock — 1 GHz, 500 Cycles

What the 1 GHz and 50 Ohm Ratings Mean for Signal Integrity

The 1 GHz bandwidth covers composite video (NTSC/PAL), baseband RF up to L-band, and many lab-grade oscilloscope probes. The 0.2 dB insertion loss is typical for a BNC barrel at these frequencies — the board lock and isolated body help maintain that loss figure by keeping the ground reference stable and preventing shield-current loops.

Mounting and Termination — Panel Bulkhead with Right-Angle Solder Tails

This jack mounts through a bulkhead using a front-side nut (the bulkhead flange is integral to the zinc die-cast body with nickel finish). The isolated body means the shell is not tied to the PCB ground plane internally, giving you the option to float the shield or connect it through a separate path.

How This Compares to the 031-5538-10RFX Peer

The 031-5538-10RFX shares every electrical and mechanical spec — same 50 Ohm impedance, 1 GHz bandwidth, 500 mating cycles, board lock, isolated body, and nickel-plated zinc die-cast shell. The difference is packaging: the 031-5538-1010 ships in a Tray, while the 031-5538-10RFX ships in Bulk and includes 3 pieces (1 connector, 1 lockwasher, 1 nut). Both are Active and interchangeable in the panel cutout and PCB footprint.

Frequently asked questions

Will 031-5538-1010 drop into a panel specified for 031-5538-10RFX?

Yes, the two share identical electrical specs (50 Ohm, 1 GHz, 500 cycles), body material, finish, and mounting dimensions. The only difference is packaging — Tray vs Bulk — and the 10RFX includes a lockwasher and nut. The panel cutout and PCB footprint are the same.
