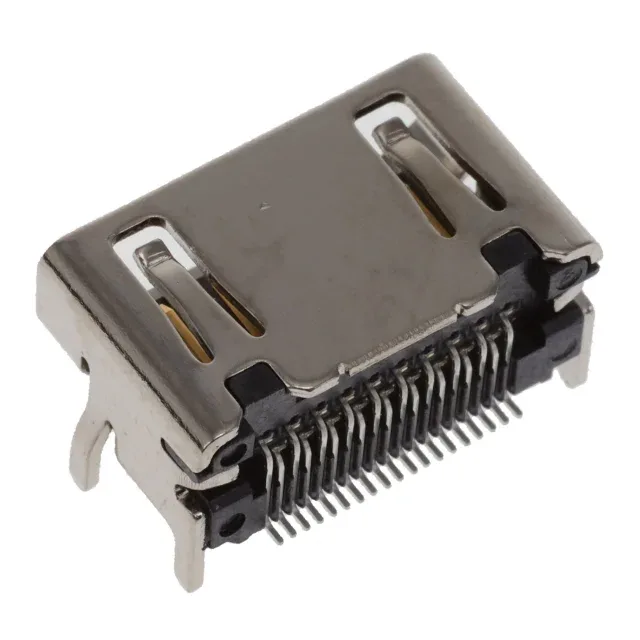

10029449-001TLF — Amphenol product photo
Amphenol

Amphenol FCI 10029449-001TLF HDMI Receptacle, 19 Pos, 0.5A

MPN10029449-001TLF
Active

Amphenol FCI, HDMI 1.4 receptacle, 10029449-001TLF, 19 contacts, 0.5A, 40V, shielded, SMT right-angle, gold GXT™ plating.

$8.5700Ref. price · indicative, final on quote
10029449-001TLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10029449-001TLF Technical Specifications
ParameterValue
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeHDMI
Voltage - rated40V
Current rating0.5A
Positions19
Mounting featureHorizontal
Operating temperature-20°C~85°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold, GXT™
SpecificationsHDMI 1.4
Number of ports1

Product details

HDMI 1.4 Receptacle, 19 Positions, Shielded SMT

The steel shell provides full shielding, and the contacts carry gold GXT™ plating — a hard gold alloy that holds up to the rated 10000 mating cycles without significant wear. Rated 0.5 A per contact at 40 V, with an operating range of -20°C to 85°C and a UL94 V-0 rated housing.

HDMI 1.4 vs 2.0 — What the Spec Means

This connector is built and tested to the HDMI 1.4 specification. It will physically mate with any standard HDMI plug, including HDMI 2.0 cables, but the signal path is only qualified for HDMI 1.4 data rates. For an HDMI 2.0 link (18 Gbps), the connector's electrical performance — crosstalk, return loss, and skew — may not meet the tighter margin required. If the application calls for HDMI 2.0 compliance, use a connector explicitly rated for that spec.

Frequently asked questions

Is 10029449-001TLF compatible with HDMI 2.0?

No — it is specified to HDMI 1.4. It will mate physically with HDMI 2.0 plugs, but the signal integrity is only qualified for HDMI 1.4 data rates.
