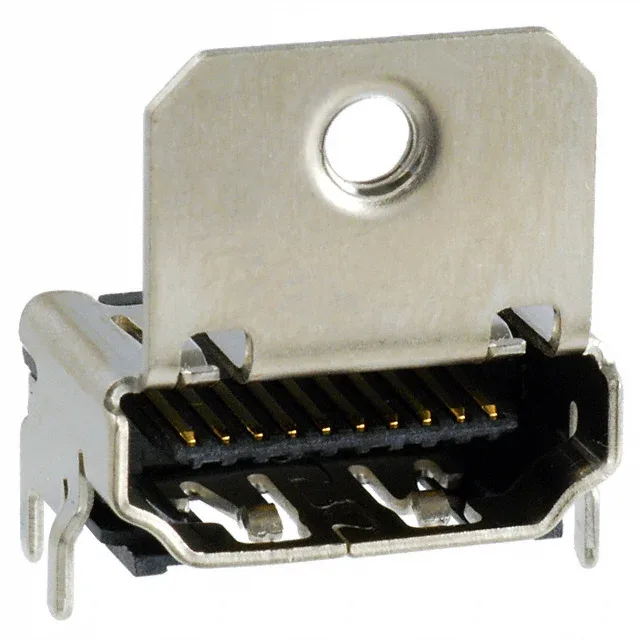

10029449-002RLF — Amphenol product photo
Amphenol

Amphenol 10029449-002RLF HDMI Receptacle, 19 Pos, 0.5A

MPN10029449-002RLF
Active

Amphenol HDMI 1.4 receptacle, 10029449-002RLF, 19 contacts, 0.5 A, 40 V, SMT right-angle, shielded, gold GXT™ contacts, 10000 mating cycles, UL94 V-0.

$3.8700Ref. price · indicative, final on quote
10029449-002RLF datasheet
StockIn Stock (25)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10029449-002RLF Technical Specifications
ParameterValue
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeHDMI
Voltage - rated40V
Current rating0.5A
Positions19
Mounting featureFlange, Horizontal
Operating temperature-20°C~85°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold, GXT™
SpecificationsHDMI 1.4
Number of ports1

Product details

HDMI 1.4 Receptacle for Edge-Mounted Video Ports

The Amphenol 10029449-002RLF is a standard HDMI Type A receptacle, 19-position, designed for HDMI 1.4 applications. The shielded steel shell and gold GXT™ contact finish support the 10000 mating cycle rating, making this a good fit for ports that see frequent plug/unplug duty.

Signal Path and Current Limits

The 0.5 A limit is typical for HDMI digital lines (TMDS, DDC, HPD) and reflects the narrow contact pitch and dense 19-position layout.

The right-angle SMT termination places the solder joints on the board surface, while the flange provides a secondary mechanical anchor — the flange bolts to the chassis or panel, taking strain off the SMT pads during cable insertion and removal.

RoHS compliant. The tape-and-reel packaging (also available in cut tape) suits automated pick-and-place assembly.

Frequently asked questions

Where can I buy 10029449-002RLF?

This part is active and sourced to order.
