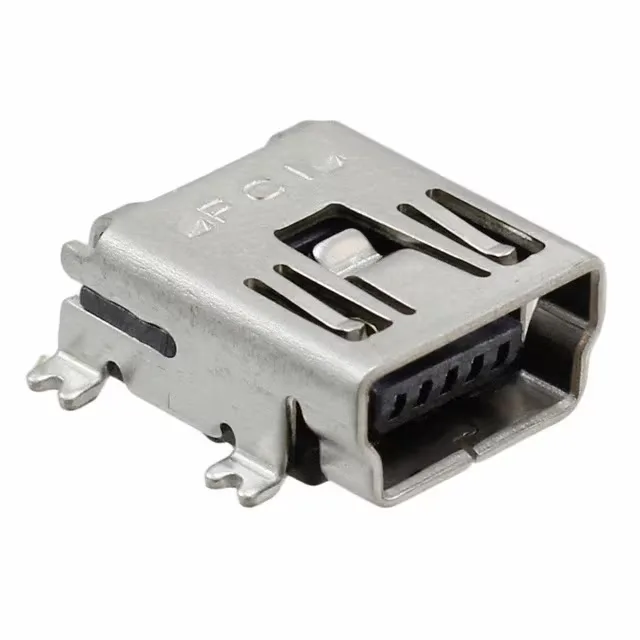

USB Mini B Receptacle for SMT Assembly
This is the standard 5-pin mini B form factor used across USB 2.0 portable and peripheral applications — cameras, external drives, handheld instruments — where a compact, shielded interconnect is needed.
SMT Footprint and Orientation
The board guide aids pick-and-place alignment, and the solder retention features anchor the connector during wave or reflow soldering. No through-hole posts — the mechanical retention relies on the solder joints and the board guide, so the PCB footprint must match the manufacturer's recommended land pattern for reliable shear strength.
