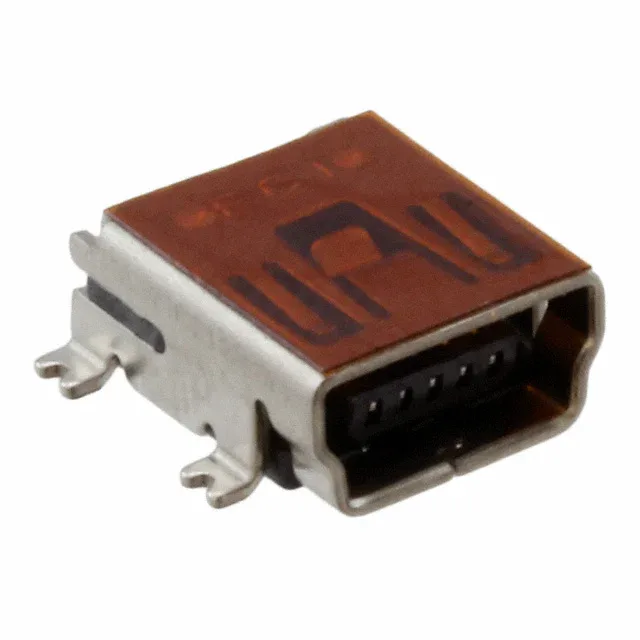

10033526-N3212MLF — Amphenol product photo
Amphenol

Amphenol 10033526-N3212MLF USB mini B Receptacle

MPN10033526-N3212MLF
Active

Amphenol, USB - mini B receptacle, 10033526-N3212MLF, 5 contacts, 1 A per contact, 30 V, SMD right-angle, shielded, gold contact finish, 5000 mating cycles.

$0.8700Ref. price · indicative, final on quote
10033526-N3212MLF datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10033526-N3212MLF Technical Specifications
ParameterValue
Mounting typeSurface Mount, Right Angle
Connector typeUSB - mini B
Voltage - rated30V
Current rating1A per Contact
Positions5
Mounting featureHorizontal
Operating temperature-25°C~85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
Number of ports1

Product details

USB mini B Receptacle for SMD Assembly

It's the standard 5-pin mini B form factor used in portable electronics, instrumentation, and data interfaces where a compact, shielded USB connection is needed. The shielded copper alloy shell and gold-plated contacts handle the signal path and repeated plug cycles — rated for 5000 mating cycles, which is well above the typical consumer USB connector.

What the 5000 Mating Cycles Mean in the Field

Rated for 5000 mating cycles.

Board Fit and Assembly Notes

Tape & Reel or Cut Tape packaging options let you choose between reel-fed pick-and-place or smaller quantities for prototype runs.

Frequently asked questions

What is the part number 10033526-N3212MLF?

Buyers need to confirm exact part identity before purchase.

Is the 10033526-N3212MLF in stock?

Stock availability is critical for sourcing decisions.

What is the price of 10033526-N3212MLF?

Pricing influences procurement choices and budget planning.

What are the specifications of 10033526-N3212MLF (pinout, dimensions)?

Design engineers need specs to validate fit and compatibility.

What is an equivalent or replacement for 10033526-N3212MLF?

Finding alternatives helps with supply chain flexibility.

Is the 10033526-N3212MLF obsolete or active?

Lifecycle status determines long-term availability and design viability.
