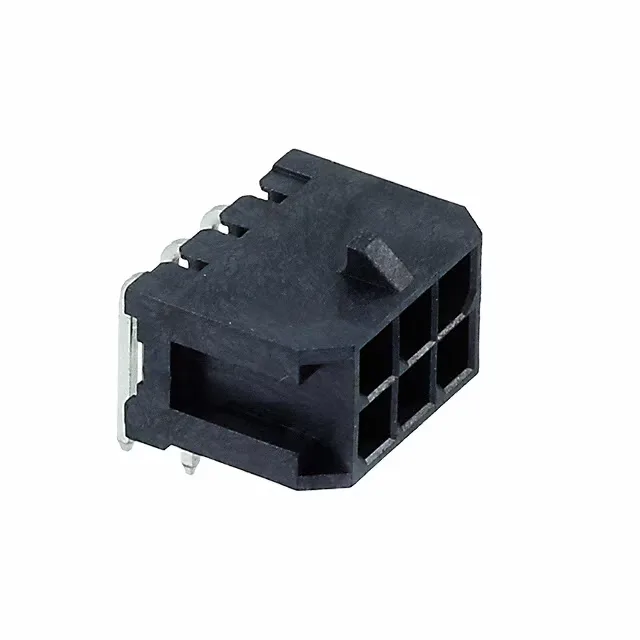

Amphenol ICC (FCI) Minitek® Pwr 3.0 header, 10127720-061LF, 6 positions, 2-row, 3.00 mm pitch, right-angle through-hole, shrouded 4-wall, board lock, tin-plated male pins, locking ramp, UL94 V-0 LCP housing, -40°C to 105°C.
10127720-061LF Minitek Pwr 3.0 Header – 6 Pos Right Angle
MPN10127720-061LF
Active
Amphenol ICC (FCI) Minitek® Pwr 3.0 header, 10127720-061LF, 6 positions, 2-row, 3.00 mm pitch, right-angle through-hole, shrouded 4-wall, board lock, tin-plated male pins, locking ramp, UL94 V-0 LCP housing, -40°C to 105°C.
$0.7300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMinitek® Pwr 3.0
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® Pwr 3.0 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.285\" (7.25mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What does the 10127720-061LF mate with?
This header mates with a Minitek Pwr 3.0 receptacle housing (crimp or IDC type) that accepts the matching male pin contacts.
