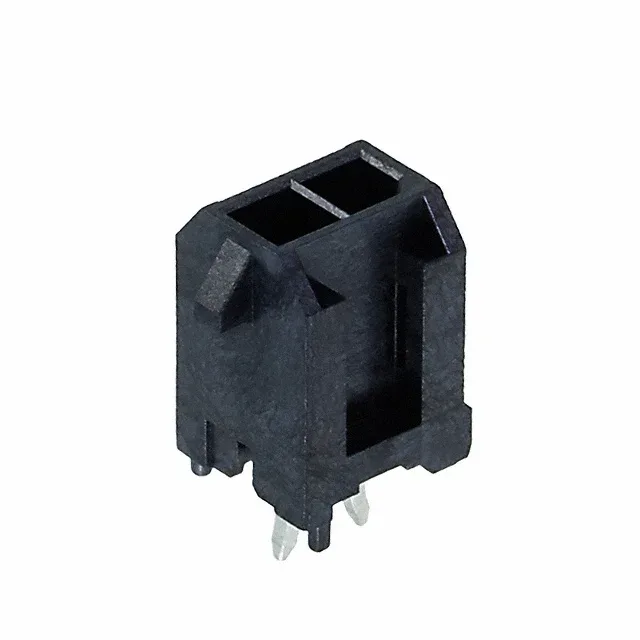

10127721-021LF — Amphenol product photo
Amphenol

10127721-021LF Amphenol ICC Minitek Pwr 3.0 Header, 2 Pos

MPN10127721-021LF
Active

Amphenol ICC (FCI) Minitek® Pwr 3.0, Header, 2 Positions, 0.118" (3.00mm) Row Spacing, Through Hole, Kinked Pin Solder, Shrouded - 4 Wall, Locking Ramp, Tin Mating & Post, UL94 V-0, Tray

$0.4300Ref. price · indicative, final on quote
10127721-021LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10127721-021LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 3.0
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.433\" (11.00mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

600VAC/DC Rating and UL94 V-0 Housing

The 10127721-021LF: The tin-plated mating finish (100.0µin thickness) is a workhorse choice for moderate mating-cycle applications — typically 50-100 cycles — and is compatible with the matching Minitek® Pwr 3.0 receptacle crimp terminals. The post finish is also tin, with the same thickness, so the solder joint is reliable through wave-solder processes.

Peer Comparison: 10127721-021GLF vs 10127721-021LF

The closest functional second-source is the 10127721-021GLF — identical in every spec (2 positions, 3.00mm row spacing, tin plating, locking ramp, UL94 V-0) except the GLF variant adds a Glow Wire Compliant feature. If your application does not require glow-wire testing, the 021LF is the direct drop-in alternative.

Frequently asked questions

Is 10127721-021LF RoHS compliant?

Yes, the 10127721-021LF is RoHS compliant per the manufacturer's listing.
