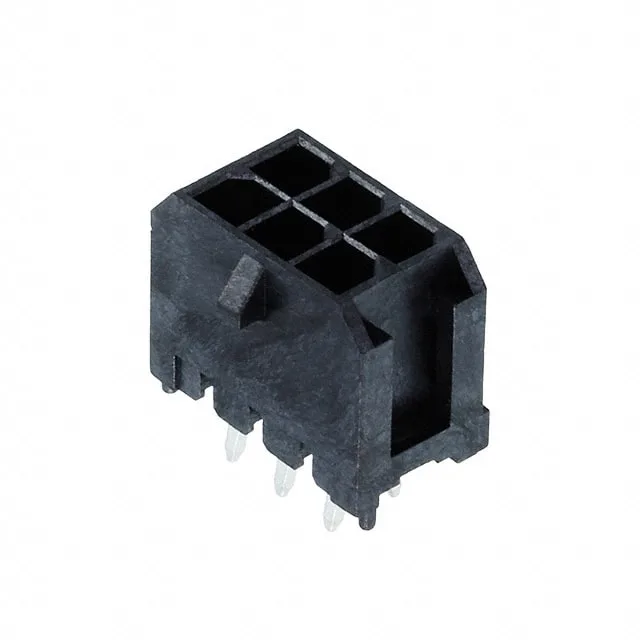

The 10127721-061LF: This is a through-hole header with kinked pins — the kink provides a press-fit retention force in the plated through-hole before soldering, holding the component in place during wave or hand-solder operations. The 0.126" (3.20mm) post length is compatible with standard 1.6mm-thick PCBs; the 0.433" (11.00mm) insulation height sets the mated stack height above the board surface, which matters for enclosure clearance. The dual-row layout with 0.118" (3.00mm) row spacing gives a 6.00mm overall width across the two rows, which is a compact footprint for a 6-circuit power or signal interconnect.
It is supplied in tray packaging.
The Minitek® Pwr 3.0 family includes 8-position (10127721-081LF) and 10-position (10127721-101LF) variants with identical pitch, plating, shrouding, and locking ramp features.
